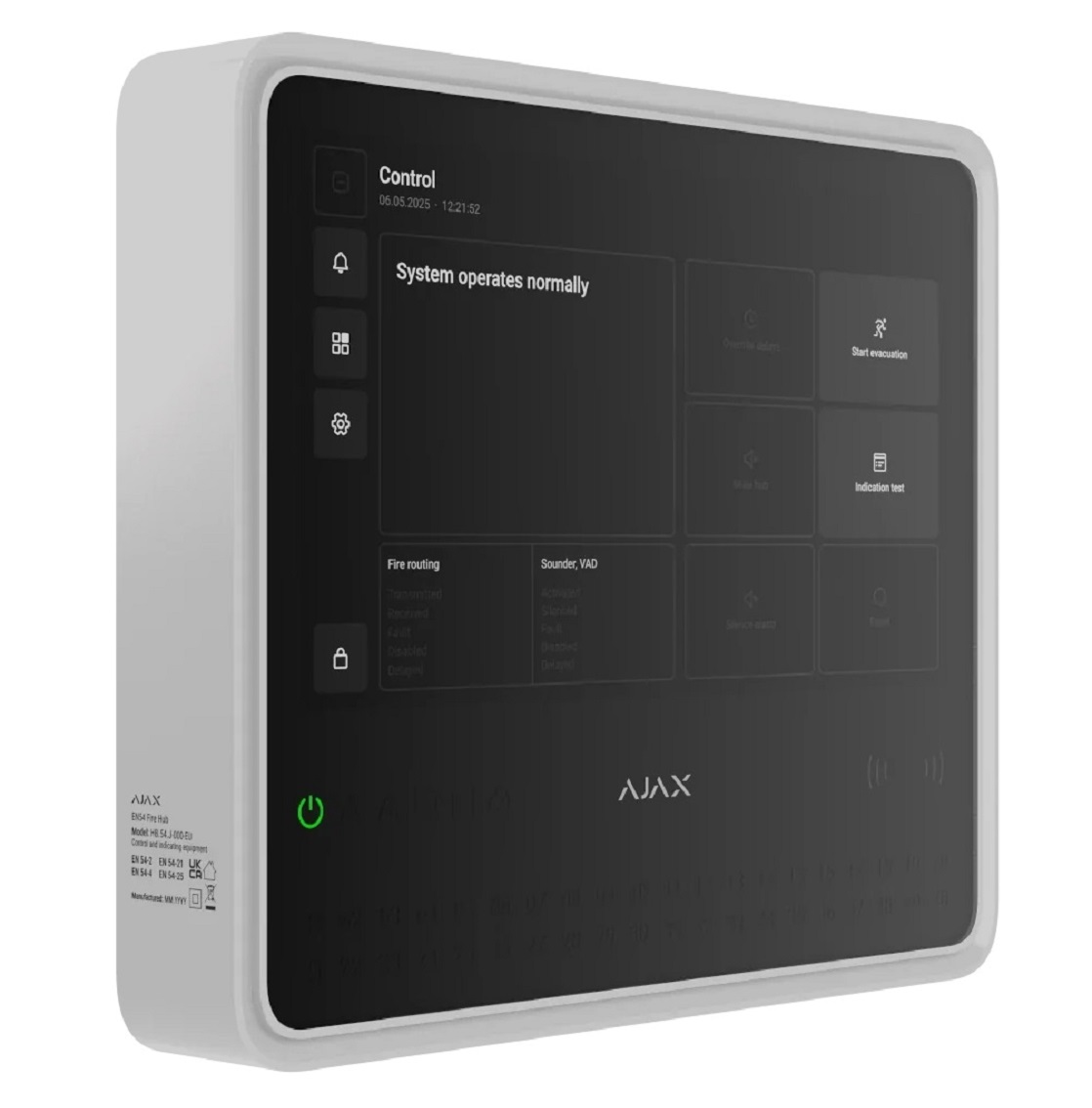

Ajax EN54 Fire Detection Hub White
Ajax EN54 Fire Detection Hub White

Ajax EN54 Fire Detection Hub White

€1,296.00
  • Introducing EN54 Fire Hub Jeweller, the Ajax's touchscreen CIE designed for all-around management of a fire safety system. It's easy to install, simple to use, and doesn't require much upkeep. Built-in communicators and a fully wireless device connection allow the system to be quickly deployed and connected to monitoring stations through Ajax apps. With its large touch screen and intuitive interface, the CIE provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation.
  • The CIE also supports EN 50131 (Grade 2) intrusion protection, video surveillance, and automation devices, making it a unified solution for commercial and municipal sites. Each alarm can be supported by visual verification, helping guide the facility staff on responding to the emergency.
Specification
  • up to 200 / Supports Ajax devices from the EN54 product line, wireless intrusion devices, and resettable buttons for manual fire alarm activation in any combination, except for the following:
  • up to 40 / Alerts about fire in separate zones. Every zone may include multiple rooms.
  • up to 36
  • up to 224 via Ajax NVRs and up to 492 standalone
  • up to 10 when using RTSP via SDK / up to 224 when using ONVIF via Ajax NVRs
  • up to 200 / Any number of admin users within the CIE limit. / PRO accounts for installers. / PRO accounts for installation and monitoring companies. / Access management for users.
  • up to 64 / By alarm. / By schedule. / By arming/disarming. / By temperature, humidity, CO2 concentration. / By pressing Button. / By touching LightSwitch.
  • up to 80
  • Stores a detailed log of fire alarms and system events. Capacity: up to 5,000 events.
  • Two-way communication. / Advanced sabotage protection. / Block encryption featuring a dynamic key. / Instant notifications. / Remote control and configuration in Ajax apps.
  • 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz
  • up to 20 mW / Automatic power control to reduce power consumption and radio interference.
  • GFSK
  • up to 1,800 m / Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
  • All stored and transmitted data is protected by block encryption featuring a dynamic key.
  • To prevent radio interference and jamming.
  • up to 1,800 m / Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
  • 1 8P8C socket  / Up to 100 Mbps.
  • 2 micro-SIM slots
  • 2G / GSM900/DCS1800 (B3/B8) / 4G (LTE) / FDD B1/B3/B5/B7/B8/B20
  • 802.11 b/g/n module / up to 72 Mbps.
  • Instant switching between Ethernet, Wi-Fi, and SIM. / Instant switching between 4G (LTE), 3G, and 2G networks of one SIM. / Switching between SIMs takes up to 4 minutes.
  • Ethernet / Wi-Fi / Cellular connection / Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet.
  • Push notifications / SMS / Calls
  • System alarms and events / Panic button coordinates / Photo verification
  • SIA (DC-09) / SurGard (Contact ID)
