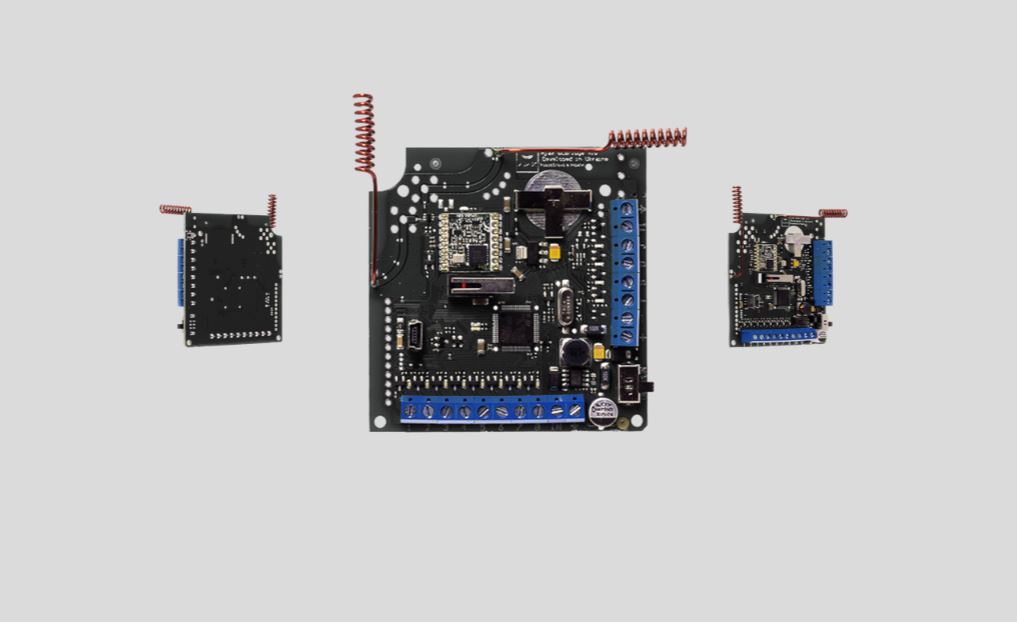

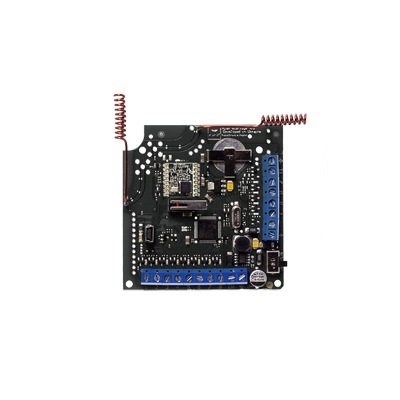

AJAX ocBridge Plus Wired Integration

€113.00
  • Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas

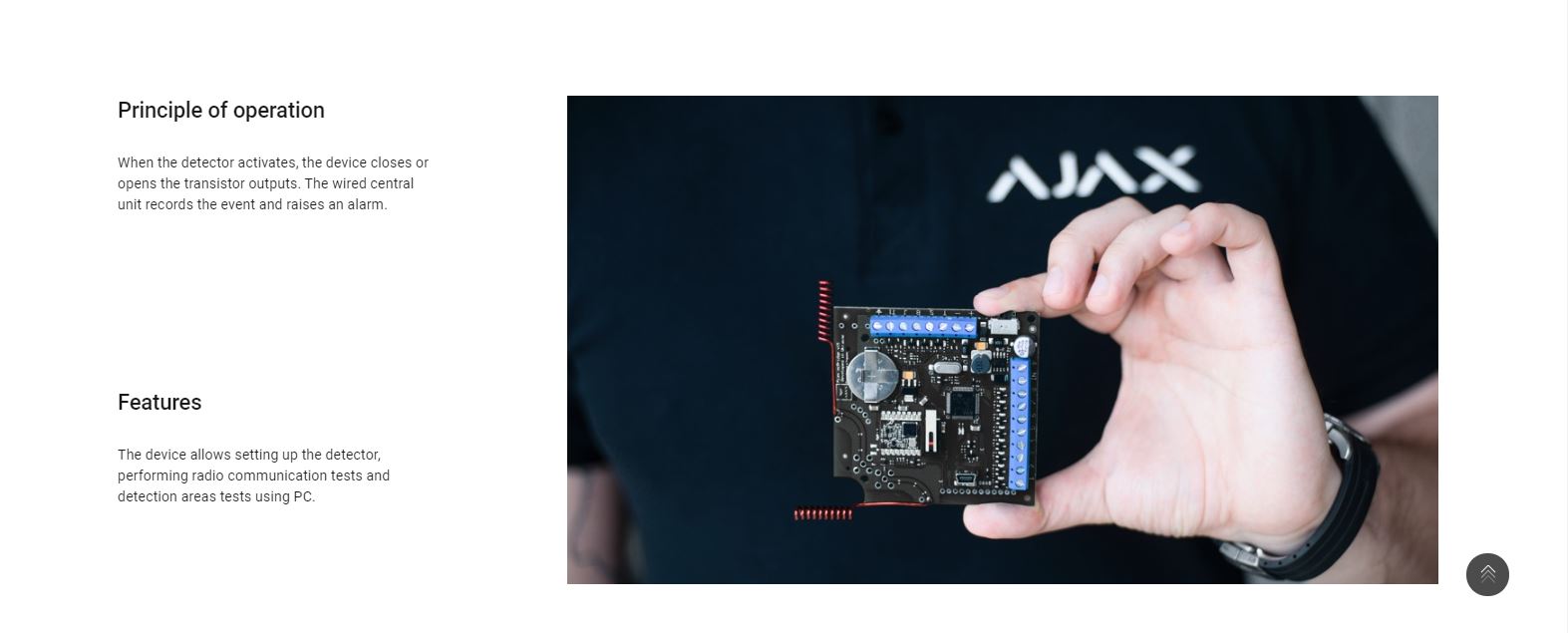

  • When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm
  • The device allows setting up the detector, performing radio communication tests and detection areas tests using PC

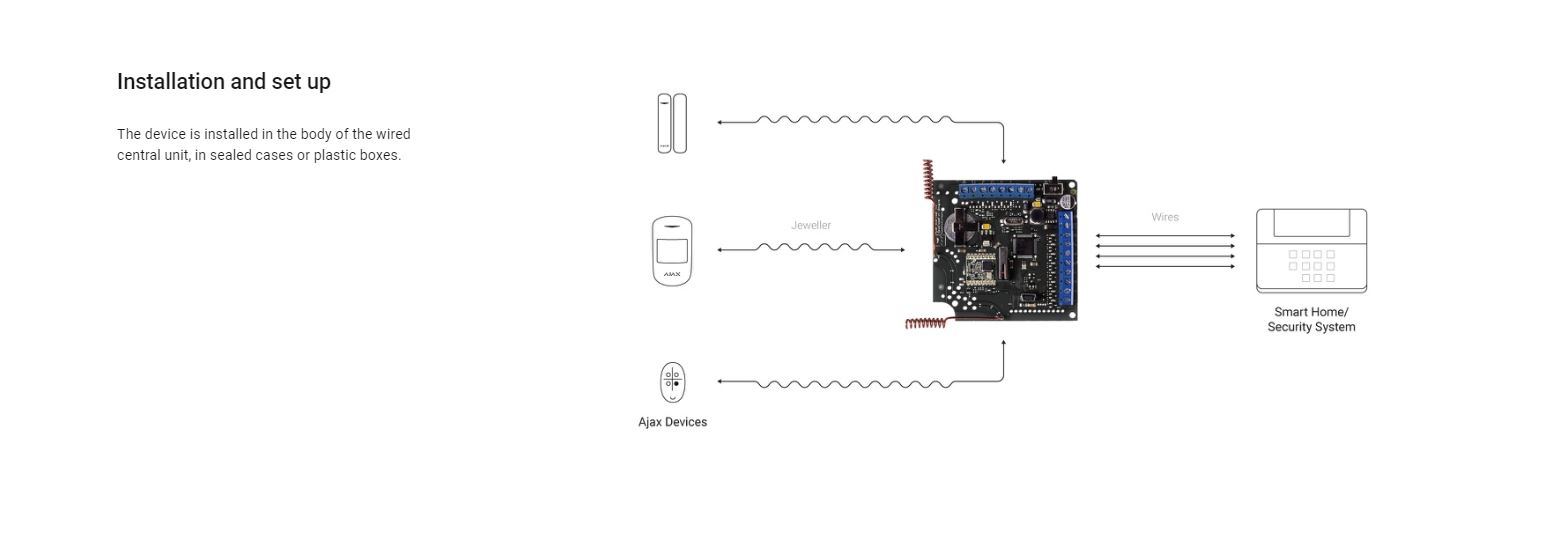

  • The device is installed in the body of the wired central unit, in sealed cases or plastic boxes



Specification
  • Receiver of wireless detectors
  • Indoors
  • Wired and hybrid security systems
  • 8
  • 4
  • NO/NC, EOL, 2EOL
  • 99
  • MotionProtect / MotionProtect Plus / CombiProtect / DoorProtect / FireProtect / FireProtect Plus / LeaksProtect / SpaceControl / GlassProtect
  • 0.15 s
  • Terminals +/ground
  • 8 - 14 V DC
  •   5 V (only for set up)
  • Communication range with detectors — up to 2,000 m in an open space / Two-way communication with detectors
  •   868.0 - 868.6 MHz
  • up to 25 mW
  •   AES algorithm
  • 12 - 300 s
  • Yes
  • Yes
  • From –10°? to +40°?
  • Up to 90%
  • Protection against fraud
  • Tamper
  • Via configurator for PC
  • Current firmware version 4.50.0
  • miniUSB
  • 95 × 92 × 18 mm
  • 139 g
  • CE
  • Replacement and repair within 24 months of the date of sale
