CasaTunes CT-6X6MA Matrix Amplifier 6 Sources X 6 Zones 50W per room

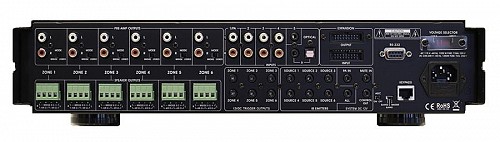

Amplifier outputs
- 6 x 50W stereo outputs at @ 8 Ohms
- 6 stereo preamplifier outputs for powered subwoofer and secondary power amplifiers
- Bridgeable channels for more power
- Expandable to 32 rooms. Each additional unit supports 6 more rooms
Input Sources
- 6 source inputs (5 x analog + 1 x analog or digital)
- 6 IR emitters, one for each input source
- 1 Common IR emitter for all sources
Triggers Outputs
- 6 trigger outputs. Enables +12V trigger when corresponding room is powered on
- Common trigger out. Enables +12V when any room on this unit is powered on
Advanced Features
- Configure the balance, bass and treble settings for each room
- +12V Page In Trigger powers and switches all zones to Input Source 1. For even more flexibility consider using the CasaTunes music server custom chimes capabilities.
- +12V Mute In Trigger mutes all zones
- Automatic Gain Control (AGC) switch adjusts the gain on all input sources so the volume levels are similar

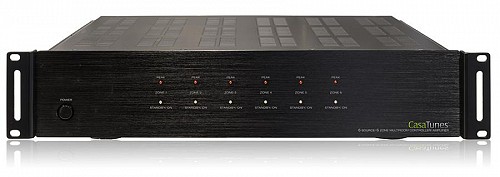

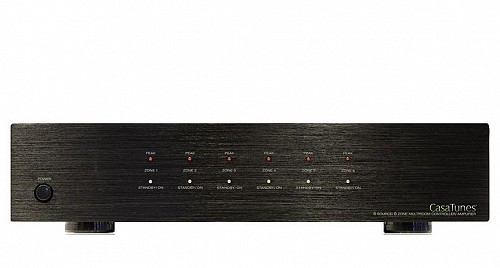

Front Panel LEDs
- Room On/Standby LEDs: Indicates whether a room is on or in standby mode
- Peak LEDs: Indicates when the input level of the connected source is too high
Other
- 6 keypads (and one keypad hub) included
- 1 remote control included
- 115/230V Voltage Selector Switch (with fuse)
- Programmable control via RS-232
- Rack ears included
- Expansion cable for linking to another unit is included
- RMS Power @ 8 ohms: 50W x 6
- RMS Power @ 4 ohms: 100W x 6
- RMS Power @ 8 ohms in bridge mode: 100W x 3
- S/N Ratio: > 85dB A Weighted
- THD: <0.1%
- Frequency Response: 20Hz - 20kHz
- Input Impedance: >47K Ohms
- Input Sensitivity: 250mV
- Amplifier Protection: Overload, Short Circuit & Thermal
- Trigger On Output Voltage: +12V DC
- External Trigger In Voltage: +12V DC
- Infrared Frequency: 38 kHz
- Input Connectors: 3.5mm Stereo, RCA, S/PDIF
- Output Connectors: Terminal Block, 3.5mm Momo, RCA Pre-Amp
- Power Supply (switchable): AC 115V/60 Hz, 230V/50 Hz
- Dimensions: 16.9" x 3.5" x 16.4" (430 x 89 x 416 mm)
- Weight: 24.3 lbs (11 Kg)
