Dahua

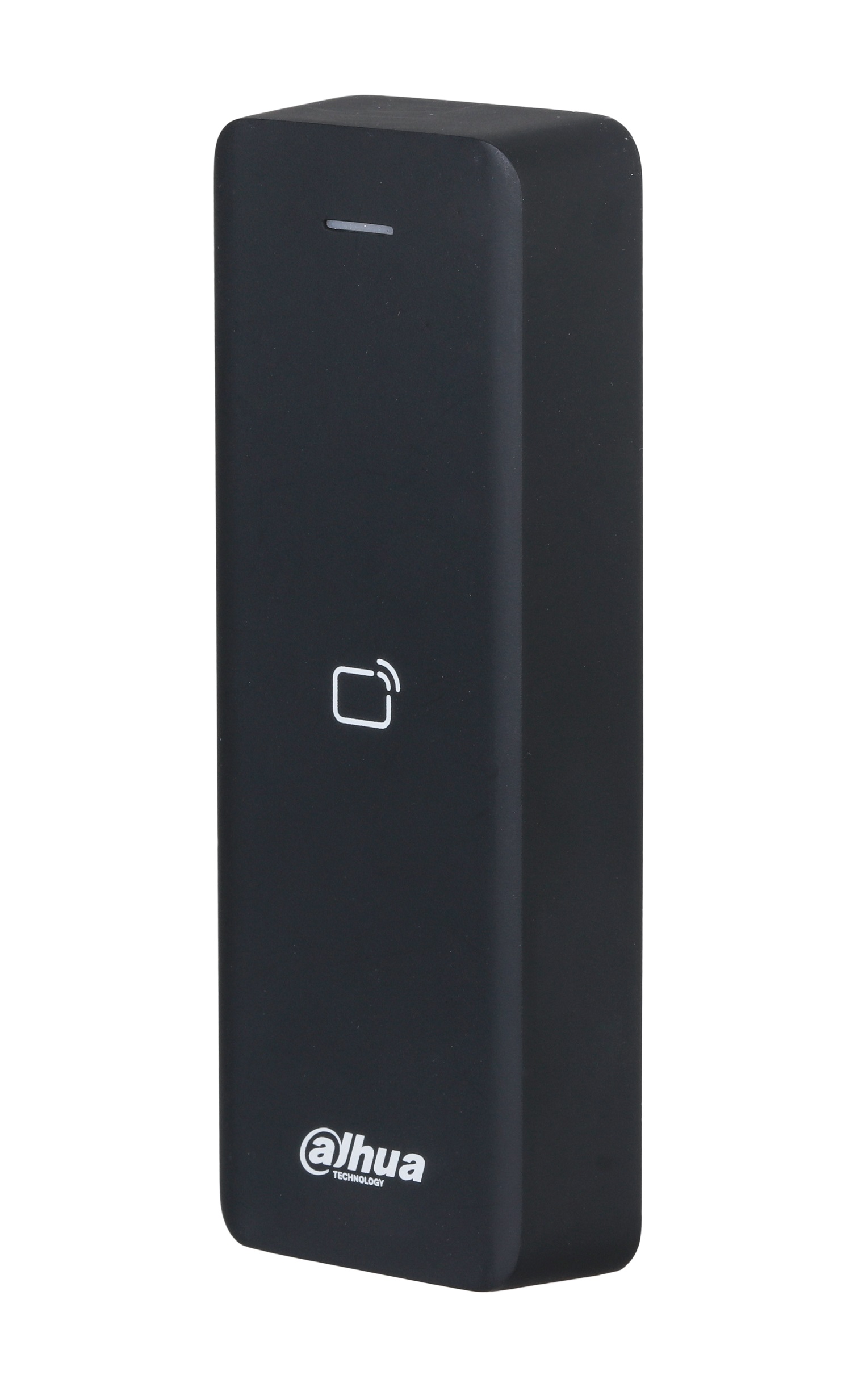

Dahua AC RFID Reader ASR2100H
Order code: 24705
- OSDP Protocol:Yes
- Product Type:Card reader
- Buzzer:Yes
- Casing Material:PC + ABS
- Unlock Mode:Card
- All specifications
€21.00€41.00incl. VAT
You save €20.00 (49%)
Out of stock
Description
- Card unlock
- RS-485 and Wiegand 34 communication (Wiegand-26 can be customized)
- Prompts using the buzzer and indicator light
- Tamper alarm
- Watchdog monitors and controls the device when it behaves abnormally, performing recoveries when necessary to ensure the long- term operation of the device. > All the connection ports have overcurrent and overvoltage protection
- IP66 rated
Specifications
- OSDP Protocol
- Yes
- Product Type
- Card reader
- Buzzer
- Yes
- Casing Material
- PC + ABS
- Unlock Mode
- Card
- Card Type
- IC card
- Response Time
- 0.1 s
- Card Reading Distance
- 0 cm–8cm
- RS-485
- 1
- Wiegand
- 1 channel output
- Tamper alarm
- Yes
- Power Supply
- 12 VDC, 0.5 A
- Protection
- IP66
- Power consumption
- ≤ 0.48 W (standby), ≤ 1.2 W (working)
- Product Dimensions
- 127 mm × 46 mm × 20 mm
- Packaging Dimensions
- 139 mm × 73 mm × 48 mm
- Operating Temperature
- –30 °C to +70 °C (–22 °F to +158 °F)
- Operating Humidity
- ≤ 95% (RH)
- Operating Environment
- Outdoor
- Gross weight
- 104 g
- Installation
- Surface Mount
