Dahua

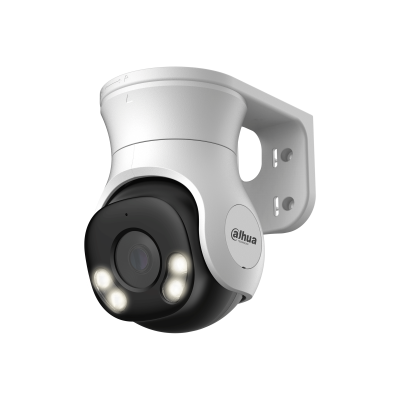

Dahua HDCVI 5.0MP PT Dual Illumination 2.8mm PT1500A-IL-A
Order code: 27276
- Image Sensor:5 MP CMOS
- Max. Resolution:2880 (H) × 1620 (V)
- Scanning System:Progressive
- Electronic Shutter Speed:PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 s
- Min. Illumination:0.05 [email protected] (Color, 30 IRE) / 0.005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- All specifications
€118.00incl. VAT
Out of stock
Description
* The parameters and datasheets below can only be applied to PT1200-IL-S6 series.
* In order to use the 5MP 16:9 andSmart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output).
- Smart Dual Light.
- Smart Area Lighting.
- Pan & Tilt.
- 40 m illumination distance.
- Super Adapt.
- Built-in Mic.
- Quick-to-install structure saves installation time.
- 2.8 mm fixed lens
- IP66, 12 VDC.
Specifications
- Image Sensor
- 5 MP CMOS
- Max. Resolution
- 2880 (H) × 1620 (V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 s
- Min. Illumination
- 0.05 [email protected] (Color, 30 IRE) / 0.005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >65 dB
- Illumination Distance
- IR: 40 m (131.23 ft) / Warm light: 40 m (131.23 ft)
- Illuminator On/Off Control
- Auto
- Illuminator Number
- 4 (Warm light);4 (IR light)
- Angle Adjustment
- Pan: 0°–355° / Tilt: 0°–90°
- Lens Type
- Fixed-focal
- Auto Focus
- No
- Lens Mount
- M12
- Focal Length
- 2.8 mm
- Max. Aperture
- F2.0
- Field of View
- 2.8 mm: H: 112°; V: 58°; D: 134°
- Iris Control
- Fixed
- Close Focus Distance
- 2.8 mm: 0.9 m
- Resolution
- 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night
- Auto(ICR)/Color/B/W
- BLC
- BLC; HLC; DWDR
- WDR
- DWDR
- White Balance
- Auto;Manual
- Gain Control
- Auto;Manual
- Noise Reduction
- 2D NR
- Illumination Mode
- Smart IR&WL; WL Mode; IR Mode
- Mirror
- Yes
- Privacy Masking
- Off/On (8 areas, rectangle)
- Certifications
- CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input
- One channel built-in Mic
- Power Supply
- 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
- Power consumption
- Max 6.4 W (12 V DC, LED on)
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- <95% (RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- <95% (RH), non-condensing
- Protection
- IP66
- Anti-corrosion Level
- Basic protection
- Casing Material
- Plastic
- Product Dimensions
- 92.9 mm × 91.3 mm × 130 mm
- Net Weight
- 0.39 kg
- Gross weight
- 0.64 kg
- Installation
- Wall mount; ceiling mount; vertical pole mount
