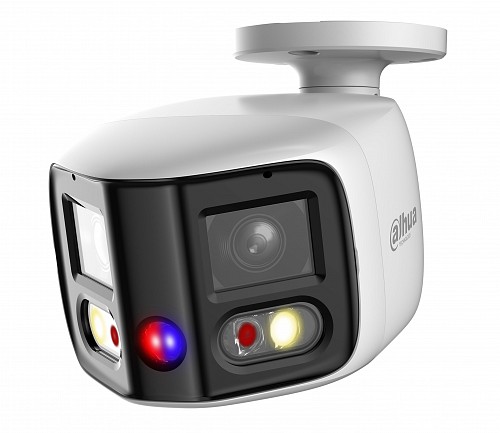

Dahua IP Lite AI 8.0MP Bullet 2.8mm IPC-PFW3849S-A180-AS-PV
- Outputs 180° wide angle splicing image
- Outputs max. 8 MP (4096 × 1860)@20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk
- 12 VDC/PoE power supply, easy for installation
- IP67 protection
- Sound and light alarm (red and blue lights)
- EPTZ: Enlarge and track the targets of intelligent alarms
- SMD 4.0
- One-tap arming/disarming through alarm input
Camera
- Image Sensor : Dual 1/2.7" CMOS
- Max. Resolution : 4096 (H) × 1860 (V)
- ROM : 128 MB
- RAM : 1 GB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination : 0.005 [email protected] (Color, 30 IRE) / 0.0005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >56 dB
- Illumination Distance : Up to 25 m (IR LED) / Up to 20 m (Warm light)
- Illuminator On/Off Control : Auto; Manual
- Illuminator Number : 2 (IR LED); 2 (Warm light)
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm
- Field of View : Horizontal: 180°; Vertical: 86°
- Max. Aperture : F1.4
- Iris Control : Fixed
- Close Focus Distance : 0.8 m
Intelligence
- IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- SMD : SMD 4.0
- Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
- Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
- EPTZ : Enlarge and track the targets of intelligent alarms
Video
- Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
- Smart Codec : Smart H.265+ / Smart H.264+
- AI Coding : AI H.265 / AI H.264
- Video Frame Rate : Main stream: 4096 × 1860@(1–20 fps ) / Sub stream: 1200 × 530@(1–20 fps) / Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Stream Capability : 3 streams
- Resolution : 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432
- Bit Rate Control : CBR/VBR
- Video Bit Rate : H.264: 6 kbps –16384 kbps / H.265: 6 kbps –16384 kbps
- Day/Night : Auto(ICR)/Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120 dB
- Scene Self-adaptation (SSA) : Yes
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Auto
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Region of Interest (RoI) : Yes (4 areas)
- Privacy Masking : 4 areas
- Defog : Yes
Audio
- Built-in MIC : Yes, built-in dual Mic
- Built-in Speaker : Yes, built-in speaker
- Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723
Alarm
- Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception
Network
- Network Port : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
- Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
- Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI
- User/Host : 20 (Total bandwidth: 64 M)
- Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS
- Browser : IE: IE 8 and later
- Chrome : Firefox
- Management Software : Smart PSS Lite; DSS; DMSS
- Mobile Client : iOS; Android
Certification
- Certifications : CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
- Audio Input : 1 channel (RCA port)
- Audio Output : 1 channel (RCA port)
- Alarm Input : 1 channel in: wet contact, 5 mA 3 V–5 VDC
- Alarm Output : 1 channel out: wet contact, 300 mA 12 VDC
Power
- Power Supply : 12 VDC (±30%); PoE (802.3af)
- Power Consumption : Basic: 3.4 W (12 VDC); 3.8 W (PoE)
- Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : ≤95%
- Storage Temperature : –40 °C to +60 °C
- Protection : IP67
Structure
- Casing : Metal
- Product Dimensions : 183.1 mm × 99.0 mm × 78.0 mm (L × W × H)
- Net Weight : 695 g
- Gross Weight : 870 g
