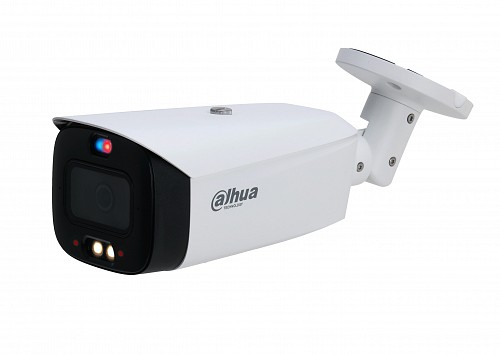

Dahua IP Lite AI WizSense 5.0MP Bullet 2.8mm Smart Dual Illumination Active Deterrence Camera IPC-HFW3549T1-AS-PV-0280B-S4
- 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- SMD 4.0
- One-tap arming/disarming through alarm input
Camera
- Image Sensor : 1/2.7" CMOS
- Max. Resolution : 2960 (H) × 1668 (V)
- ROM : 128 MB
- RAM : 512 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination : 0.003 [email protected] (Color, 30 IRE) / 0.0003 [email protected] (B/W, 30 IRE) / 0 lux (illuminator on)
- S/N Ratio : ï¹¥ 56 dB
- Illumination Distance / 30 m (IR) / 30 m (warm light)
- Illuminator On/Off Control : Auto/Manual
- Illuminator Number : 2 (IR LED) / 2 (warm light)
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 2.8 mm
- Field of View : 2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
- Iris Type : Fixed
- Close Focus Distance : 2.8 mm: 1.5 m
Professional, intelligent
- IVS (Perimeter Protection) : Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
- SMD 4.0 : Less false alarm, longer detection distance
- Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
- AI SSA : Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
Video
- Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec : Smart H.265+; Smart H.264+
- AI Coding : AI H.265; AI H.264
- Video Frame Rate : Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) / Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) / Third stream: 1920 × 1080@(1 fps–30 fps). The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
- Stream Capability : 3 streams
- Resolution : 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control : CBR/VBR
- Video Bit Rate : H.264: 3 kbps–20480 kbps / H.265: 3 kbps–20480 kbps
- Day/Night : Auto (ICR)/Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120 dB
- Scene Self-adaptation : Yes
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Auto; manual
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas)
- Region of Interest (RoI) : Yes (4 areas)
- Smart Illumination : Yes
- Defog : Yes
- Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
- Mirror : Yes
- Privacy Masking : 8 areas
Audio
- Built-in MIC : Yes, built-in dual Mic
- Built-in speaker : Yes, built-in speaker
- Audio Compression : PCM; G.711a; G.711Mu; G.726; G.723
Alarm
- Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
- Network : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
- Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- User/Host : 20 (Total bandwidth: 72 M)
- Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
- Browser : IE: IE8/9/11 / Chrome / Firefox
- Management Software : Smart PSS; DSS; DMSS
- Mobile Phone : iOS; Android
Certification
- CE-LVD: EN 62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
- Audio Input : 1 channel (RCA port)
- Audio Output : 1 channel (RCA port)
- Alarm Input : 1 channel in: 5mA 3V–5 VDC
- Alarm Output : 1 channel out: 300mA 12 VDC
Power
Power Supply : 12 VDC/PoE (802.3af)
Power Consumption :
Basic: 3.3 W (12 VDC); 4.4 W (PoE) / Max. (pulling stream+warning light+speaker+warm light on): 6.8 W (12 VDC); 8.2 W (PoE)
Environment
- Operating Conditions : –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
- Storage Conditions : –40 °C to +60 °C (–40 °F to +140 °F)
- Protection Grade : IP67
Structure
- Casing : Metal + plastic
- Dimensions : 288.4 mm × 94.4 mm × 84.7 mm (L × W × H)
- Net Weight : 1.0 kg
- Gross Weight : 1.23 kg
