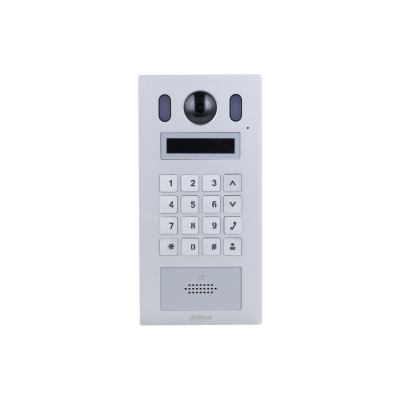

Dahua VD IP Doorphone Apartment Camera VTO6222E-P
Dahua VD IP Doorphone Apartment Camera VTO6222E-P

Dahua VD IP Doorphone Apartment Camera VTO6222E-P

€529.00
  • Highly durable and elegant, it is made of aluminum panel，and has a mechanical keypad.
  • 2MP HD camera.
  • Supports 5,000 users and 10,000 cards.
  • Supports multiple unlock methods including password, IC card, and unlocks remotely.
  • Connects card readers and controllers through Wiegand.
  • Provides 12 VDC, 600 mA power.
  • IP65 rated (silicone sealant is required for the shell, see the quick start guide).
  • IK08 rated.
  • Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Specification
  • Embedded Processor
  • Embedded Linux OS
  • Mechanical
  • 16
  • Non-touchscreen
  • 2.3"OLED
  • 1/2.9" 2 MP CMOS
  • H:140°,V:80°, D:160°
  • 120 dB
  • 3D NR
  • H264，H265
  • Main stream: 720p,WVGA, D1, CIF / Sub stream: 1080p,WVGA, D1, QVGA, CIF
  • 25 fps
  • Auto white light
  • Color/B/W
  • G.711a, G.711u, PCM
  • 1
  • Built-in speaker
  • Two-way audio
  • Echo suppression/digital noise reduction
  • 16 kHz, 16 bit
  • Digital 2-wire
  • Card swiping;password;remote
  • Mifare card
  • Yes (SD card is inserted in the indoor monitor or door station)
  • NA;Yes (SD card is inserted in the indoor monitor or door station)
  • Supports Micro SD card (up to 256 GB)
  • Yes
  • AM
  • 13.56 MHz
  • 42dBuA/m @10m
  • 0 cm–3 cm (0"–1.18")
  • Aluminum
  • 10000
  • 1
  • 1
  • 1
  • 1
  • 1 port,12 V/600 mA
  • 1
  • 1
  • 1
  • 1 × RJ-45 port，10Mbps/100Mbps network port
  • Yes
  • Silver
  • 48 VDC, 0.4 A, PoE (802.3af/at)
  • Optional
  • Flush Mount;Surface Mount
  • CE
  • Flush mount box (optional); / Surface mount box (optional)
  • 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
  • IK08, IP65 (silicone sealant is needed, see the quick start guide)
  • –40 °C to +60 °C (–40 °F to +140°F)
  • 10%–90% (RH), non-condensing
  • Outdoor
  • Beneath 3000 m (9842.52 ft)
  • ≤ 5 W (standby), ≤ 7 W (working)
  • 657 g(1.45 lb)
  • 0 °C to +40 °C (+32 °F to +104 °F)
  • 30%–75%(RH)
