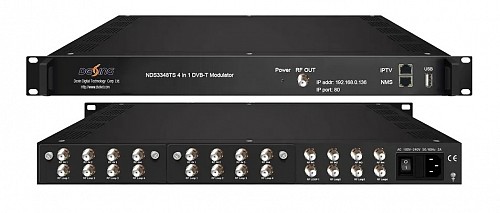

DEXIN NDS3348TS 12 DVBS To 4 DVB-T Transmodulator
NDS3348TS is a high performance and cost-effective DVB-T Transmodulator. It supports 12 DVB-S tuner inputs, after multiplexing, and modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, NDS3348TS can support Biss descrambling and can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T STB.
- 12 DVB-S2 FTA Tuner input ports
- Support maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol
- Support Biss descrambling
- Support 4 groups multiplexing +4 groups DVB-T modulating
- 4*DVB-T carrier output and 4 IP (MPTS) output over UDP and RTP protocol
- Integrated demodulating and multiplexing functions
- Support accurate PCR adjusting
- Support A/V PID filtering, PID remapping
- Support PSI/SI rebuilding and editing
- Web-based NMS management
Tuner
- Input: 12 DVB-S2 FTA Tuner input ports
- 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M Unicast/Multicast
- DVB-S Input Frequency: 950-2150MHz
- Symbol rate: 2-45Msps
- Signal Strength: -65~-25dBm
- FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
- BISS descrambling: Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Multiplexing
- Maximum PID Remapping: 256 per input channel
- Function: PID remapping, A/V PID filtering, Accurate PCR adjusting, Generate PSI/SI table automatically
Modulation
- Standard: EN300744
- FFT mode: 2K,
- Bandwidth: 6M, 7M, 8M
- Constellation: QPSK, 16QAM, 64QAM
- Guard Interval: 1/4, 1/8, 1/16, 1/32
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8
- MER: ≥42 dB
- RF frequency: 50~960MHz, 1KHz step
- RF out: 4*DVB-T adjacent carriers combined output, 40M total bandwidth limitation
- RF output level: -28~ -3 dBm (79~105 dbµV), 0.1db step
Stream out
- 4*MPTS over UDP and RTP out , RJ45, 1000M/100M, Unicast/Multicast
System
- Web-based NMS support
- Ethernet software upgrading
General
- Dimension: (W*D*H): 482mm×300mm×44.5mm
- Temperature: 0~45℃(Operation) ; -20~80℃(Storage)
- Power: AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
