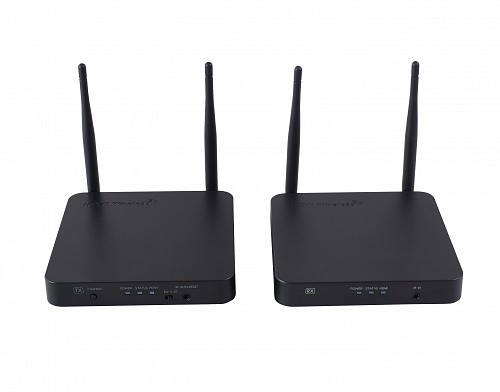

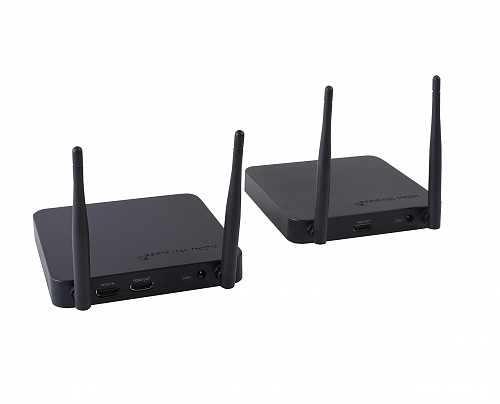

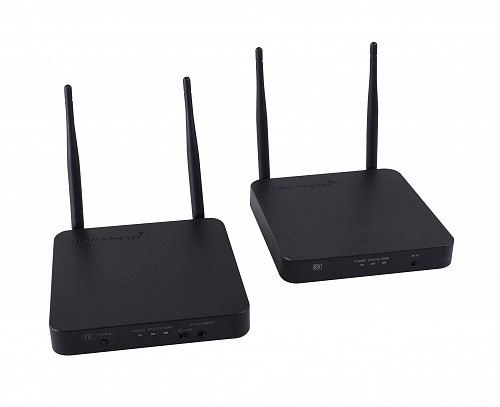

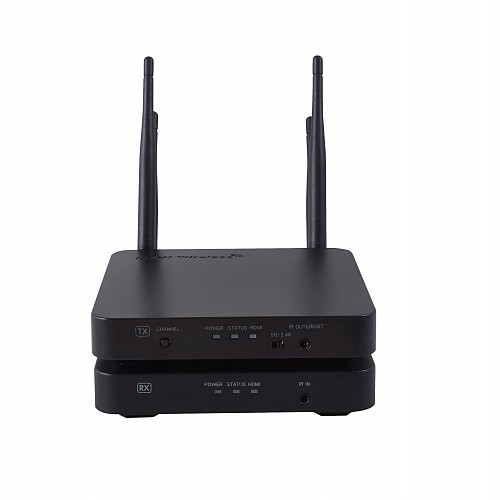

DigitMX DMX-WEXT1 Dual Band Wireless HDMI Extender 100m Loop Out/IR

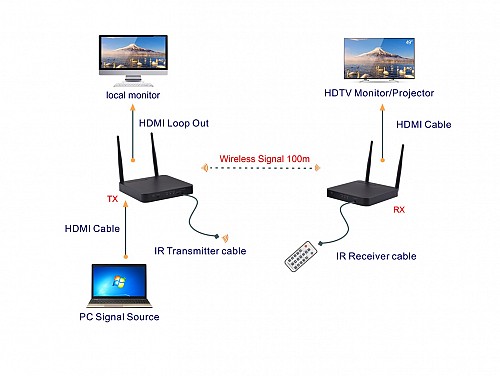

This HDMI over wireless transmitter-receiver kit extends high-definition video and audio to any HDTV display up to 100 meters away.
It follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HDMI mirror output and infrared remote control extension.
This device is widely applicable for presentations, lectures, education, conference, home entertainment etc.
- Simple Plug and Play use
- Contains a transmitter (TX) and a receiver (RX)
- The TX has one HDMI loop output, for local TV/monitor
- HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA
- 2.4G & 5GHz dual frequency wireless A/V transmission
- High transmission rate and strong
- anti-interference capability
- External dual - gain antennas
- Full HD 1080p wireless transmission up to 100 meters in open space ( May be affected by the use environment)
- Extends IR to control source device from display side
- Full hardware design, no software installation required
- Supports both panel settings and Web Configuration Interface
- HDMI resolution: up to 1080P@50/60Hz
- HDMI Audio Format: LPCM2.0/48KHz/16Bit
- HDMI Max bandwidth: 225MHz
- HDMI Max baud rate: 6.75Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- HDMI output cable distance: ≤12m AWG26 HDMI standard cable
- Antenna type: External dual 3dBi gain antenna
- Wireless standard: IEEE 802.11a/b/g/n
- Wireless Band: 2.4GHz / 5GHz ISM Band
- Max Data rates: 2T2R up to 300Mbps
- Transmit Output Power?IPEX: ±2dBm
- Transmission distance: up to 100m (in open space)
- IR Carrier frequency: 20-60KHz
- TX/RX Max working current: 1A
- Power adapter format Input: AC 100V?240V 50HZ/60Hz, DC5V/2A
- Web Interface IP address: 192.168.1.10
