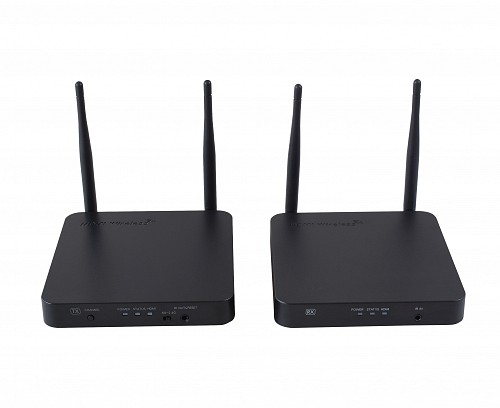

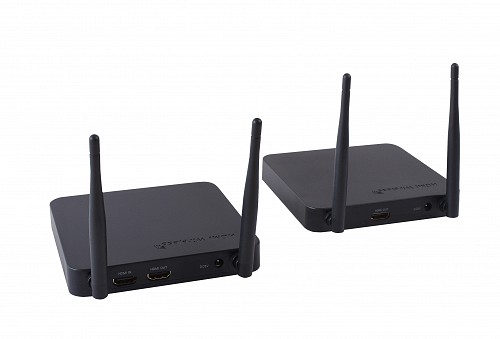

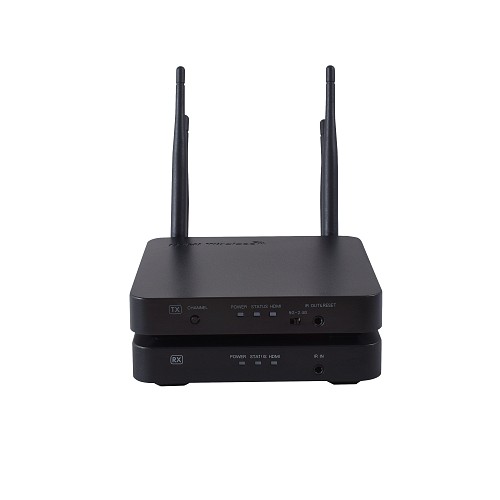

DigitMX DMX-WEXT3 Wireless HDMI Extender 100m
This product will let the user experience of transmitting the HD content by wireless. The HDMI sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away. The extender follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments etc.
- Contains a transmitter (TX) and a receiver (RX). The HDMI signal over wireless transmission from the transmitter to the receiver
- The TX support one HDMI loop output, for local screen monitor
- Support HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA
- Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate and strong anti-interference capability
- Using an external dual - gain antennas. Full HD 1080p transmits up to 100 meters wirelessly in open space.( May be affected by the use environment)
- Extends infrared remote to control source device from display side
- Support OSD, for informed of device status
- Simple Plug and Play. Full hardware design, no software installation required
- Support Web Configuration Interface, Simple and easy to use
- HDMI Compliance:HDMI1.3/HDCP1.4
- HDMI resolution: up to 1080P@50/60Hz&SVGA/XGA/WXGA/SXGA/WXGA+/UXGA/ WSXGA+/ WUXGA
- HDMI Audio Format:LPCM2.0
- HDMI Max bandwidth:225MHz
- HDMI Max baud rate:6.75Gbps
- Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal:5Volts p-p (TTL)
- HDMI output cable distance:≤12m AWG26 HDMI standard cable
- Antenna type: External dual 3dBi gain antenna
- Wireless standard:IEEE 802.11a/b/g/n
- Wireless Band:2.4GHz / 5GHz ISM Band
- Max Data rates: 2T2R up to 300Mbps
- Transmit Output Power（IPEX）: 16±2dBm
- Transmission distance: up to 100m (in open space)
- IR Carrier frequency:38KHz
- TX/RX Max working current: 1A
- Power adapter format Input: AC 100V～240V 50HZ/60Hz, DC5V/2A
- Operating Temperature range:-5 to +45℃
- Storage Temperature range: -20 to +60℃
- Operating Humidity range :10 to 90%RH (No Condensation)
- Storage Humidity range:5 to 95%RH (No Condensation)
- Case Dimension (L x W x H): 127.5x127.5x25 (mm)
- Weight: TX175g/RX170g
