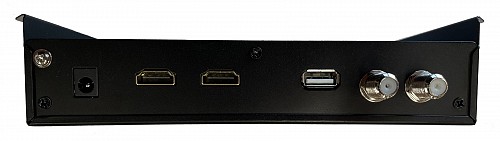

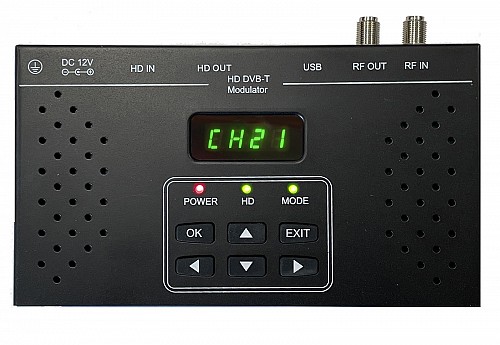

FTE MODIG S DVB-T FullHD Modulator with Loop Out
- Input: 1 x HDMI Type A
- Video encoder: MPEG-4 AVC / H.264
- Video bit rate: 1-18 Mb/s adjustable
- Audio bit rate : 192 Kbps
- Transport Stream configurable parameters: Video PID, Audio PID, PMT PID, TS IF, ONID, NID, Service name, Service ID, Providor Name
- LCN support: Yes
- Standard: DVB-T (COFDM) EN 300 744
- Bandwidth: 7, 8 MHz
- Mode: 8K
- Output frequencies: 174-230MHz / 470..862 MHz
- Output level: 100 dBμV
- MER: > 31 dB (Typical)
- Programming interface: 4 x 7 segment display and keyboard 6 buttons
- Voltage supply: +12 Vdc
- Current consumption: 290 mA
- External power supply: 100-230Vca-0.5A /12Vdc-2A
