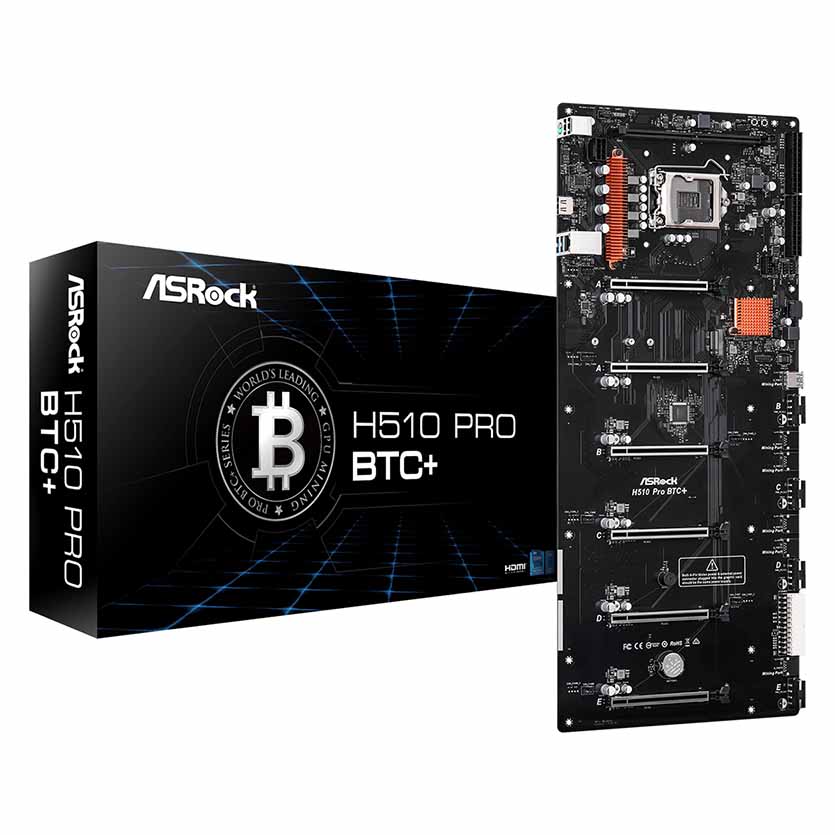

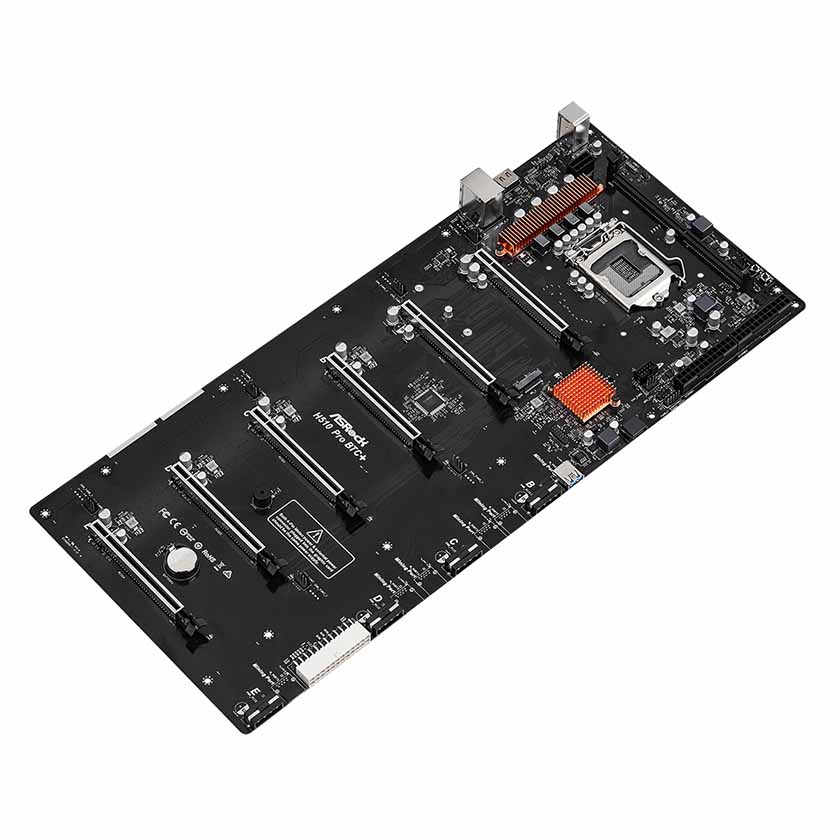

H510 PRO BTC+ MOTHERBOARD INTEL 1200 ASROCK
- H510 PRO BTC+ INTEL 1200
- Supported processor models: 11th generation of Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron processors
- Base: 1200
- Chipset: Intel H510
- BIOS: 128 Mbit AMI UEFI
- Storage max .: 32 GB
- Storage locations: 1
- Storage per storage space: 32 GB
- Storage type: DDR4
- RAM clock: 2133; 2400; 2666; 2800; 2933; 3200
- Memory channels: dual
- Storage type: non-ECC; un-buffered
- Controller in CPU: Yes

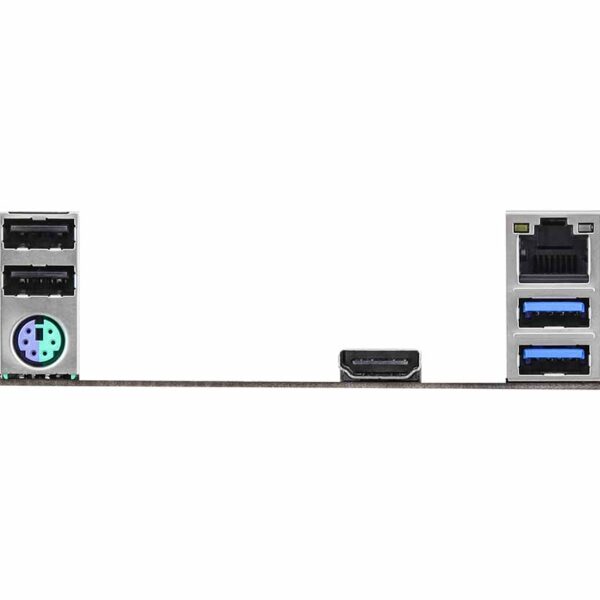

- LAN (RJ45): 1x 1 Gbit
- PS / 2 (keyboard / mouse): 1
- USB 3.0: 2
- USB 2.0: 2
- HDMI: 1
- Internal connections:
- PCIe 3.0: 6x PCIe x16
- Mainboard power: 3x24pin
- CPU power: 8pin 4x4pin
- USB header USB 2.0: 2
- Fan 4-pin PWM: 9
- Sound:
- Miscellaneous:
- LAN: Intel I219V
- Colour: black
- internal graphics: Yes
- Additional Information: 1x mining port
