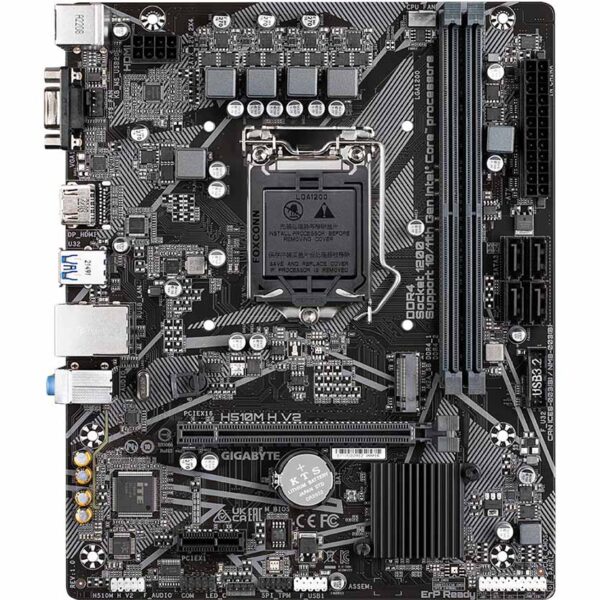

H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE
H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE
H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE
H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE

H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE

€95.20

H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE

  • H510M H V2 MICRO ATX MOTHERBOARD LGA1200 GIGABYTE



  • Number of USB 2.0 Interfaces: 2



  • USB 3.2 Gen1 (3.1 Gen1) ports: 1



  • SATA III Connectors: 4



  • Front panel audio connector: Yes



  • Front panel connector: Yes



  • ATX power connector (24-pin): YES



  • CPU fan connector: Yes



  • Number of chassis fan plugs: 2



  • EPS power connector (8-pin): Yes



  • TPM connector: Yes



  • Serial port headers: 1



  • 12V power connection: Yes



  • RGB LED header: Yes



  • Number of USB 2.0 ports: 4



  • USB 3.2 Gen1 (3.1 Gen 1) Number of Type A ports: 2



  • Number of Ethernet LAN ports (RJ-45): 1



  • Number of VGA (D-sub) connections: 1



  • Number of HDMI ports: 1



  • Number of PS/2 connections: 2



  • HDMI Version: 1.4



  • Microphone input: Yes



  • USB plug: USB Type-A



  • Supported memory: DDR4 SDRAM



  • Number of memory slots: 2



  • RAM memory maximum: 64GB



  • Memory type: DIMM



  • Memory channels: Dual channel



  • ECC: Yes



  • Without ECC: Yes



  • Supported memory speed: 2133,2400,2666,2933,3000,3200MHz



  • Unbuffered memory: YES



  • BIOS type: UEFI AMI



  • BIOS memory size: 128Mbit



  • ACPI version: 5.0



  • Clear CMOS jumper: Yes



  • Desktop Management interface (DMI) Version: 2.7



  • System management BIOS (SMBIOS) version: 2.7



  • Component for: Personal computer



  • Motherboard form factor: Micro ATX



  • Motherboard chipset family: Intel



  • Motherboard chipset: Intel H510 Express



  • Audio channels: 7.1 channels



  • PC health monitoring: Fan, temperature, voltage



  • Supports Windows operatin systems: Windows 10×64



  • Parallel processing technology: Unsupported



  • Maximum resolution: 4096 x 2304 pixels



  • HDCP: Yes



  • Number of Displays supported: 2



  • Processor manufacturer: intel



  • Processor socket: LGA 1200



  • Compatible processors: Intel Celeron, Intel Core i3,



  • Intel Core i5, intel core i7,



  • Intel core i9, Intel Pentium



  • Supported processor slots: LGA 1200 (Socket H5)



  • PCI express x1 slots: 2



  • PCI express x16 slots: 1



  • Number of M.2 (M) Slots: 1



  • Broad: 226mm



  • Depth: 185mm



  • Height: 52mm



  • Wireless internet access: No



  • Built-in Ethernet port: Yes



  • Ethernet interfaces type: Gigabit ethernet



  • Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III



  • Supported storage drives: HDD & SSD



  • Number of supported storage drives: 5



  • Supplied Cables: SATA



  • Drivers included: YES



  • Weight: 385g
