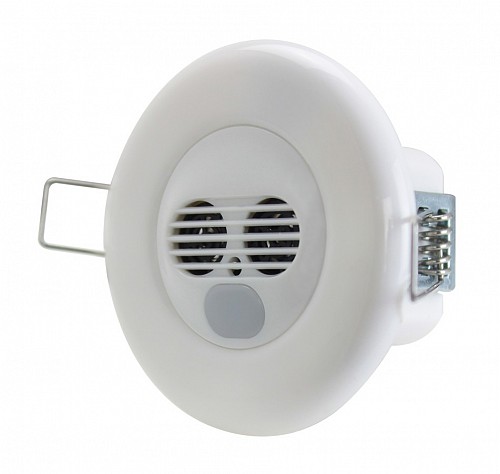

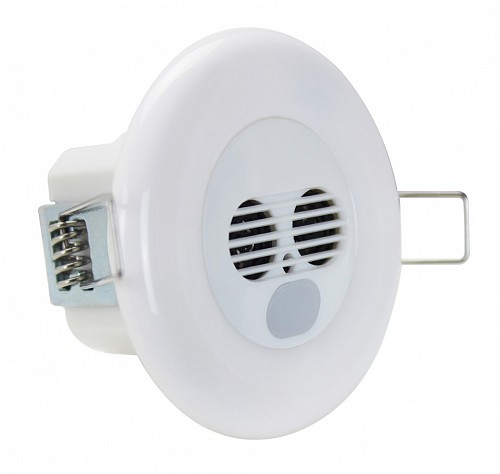

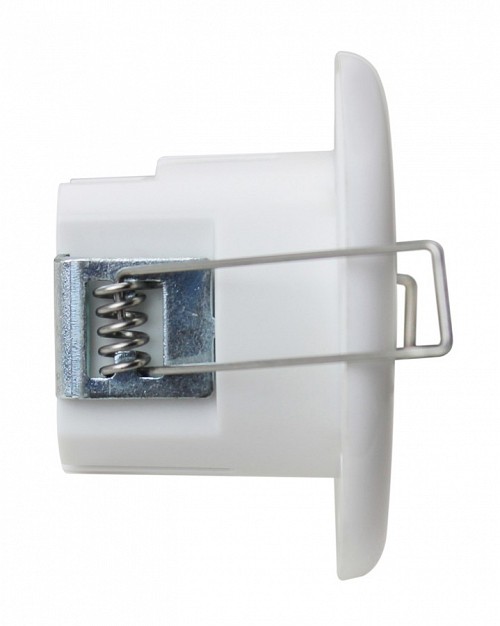

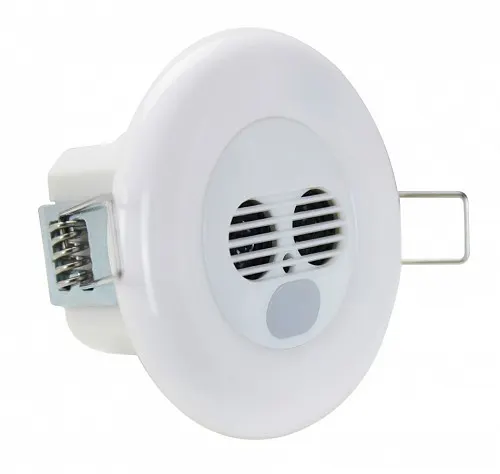

HDL Reccess Mount Ultrasonic Sensor M/US05.1
- With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
- With 2CH constant brightness control, dimming values and forced operation can be set.
- The sensor has 5 logic blocks and each block contains 10 object outputs. Telegram locking/unlocking and delay time can be set.
- Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
- Logic inputs: Ultrasonic sensing status, brightness value, temperature and external telegrams.
- 2 logical relations: AND, OR
- 2 working modes: Single mode and master / slave mode.
- The logic validity can be set by external telegram so as to ensure that end users can reset the logics.
