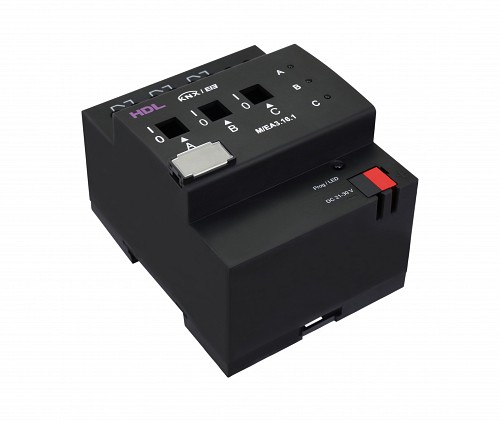

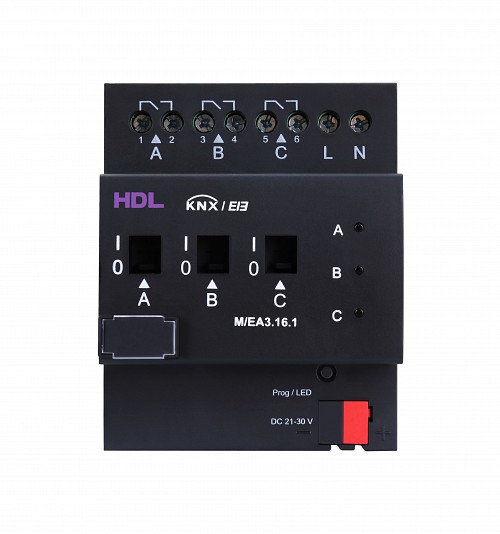

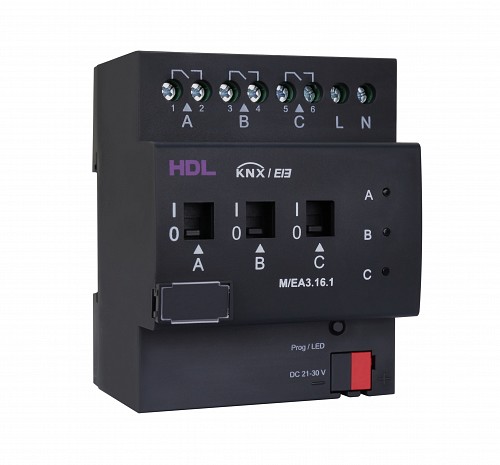

KNX Energy Meter Actuator
The main function includes:
- Enable to measure 3 channels in single phase, and supports 3CH relay control
- Enable to measure: Active energy, current, voltage, frequency, active power, apparent power, power factor.
- The threshold values of current, voltage and active power can be set.
- Meter total: as a sum of the channel meters
- Connects external current transformer
- Value sending methods: Send after a change, send cyclically, send on request
- Supports Inter-metering, Threshold values monitoring, Load master / slave control, Energy saving,
- Active power overflow function
- Supports threshold values setting. When the value is beyond the threshold value, an alarm can be sent and a channel can be disconnected below or above the threshold (16A)
- The total channel can be used as the mater load channel to control the slave load channel, up to 10 slave load channels can be controlled, and the load threshold value can be set by the external target
