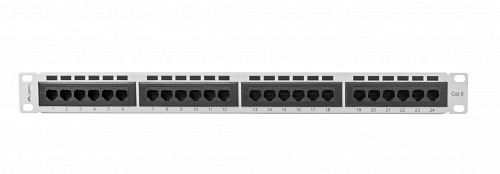

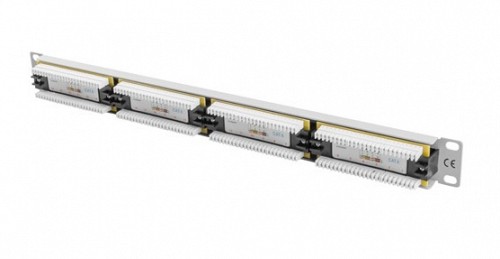

Lanberg Patch Panel 24-Port 1U 19" CAT6 UTP Grey
This particular patch panel is designed to use in main and secondary distribution points of fast telecommunications systems.
It is a passive part of structured cabling used for termination and organization of twisted-pair cables within 19" rack cabinets. Patch panels is equipped with 24 unshielded RJ-45 ports category 6.
Use of IDC/LSA connectors, provides fast and easy installation. Cable management panel attached to this product, ensures easy assembly.
- 24 unshielded RJ-45 ports category 6.
- Ports identification in the form of numbered fields.
- Designed for 19" rack cabinets.
- Height: 1U.
- Universal IDC/LSA connectors in accordance with T568A/B standards.
- Color: grey RAL7035.
- Number of ports: 24
- Connector type: Equipped
- Size: 19"
- ICT height: 1 U
- ICT category: Cat. 6
- Shielding: No
- Equipped with connectors: Yes
- Fitting type: IDC/LSA
- Material: Metal
- Standard: T568A / T568B
- Ports identification in the form of numbered fields: Yes
- RAL color: RAL7035
- Colour:Gray
- Length: 32.5 mm
- Width: 445 mm
- Height:44.45 mm
- Weight: 0.67 kg
- Required amount of screws: 4
