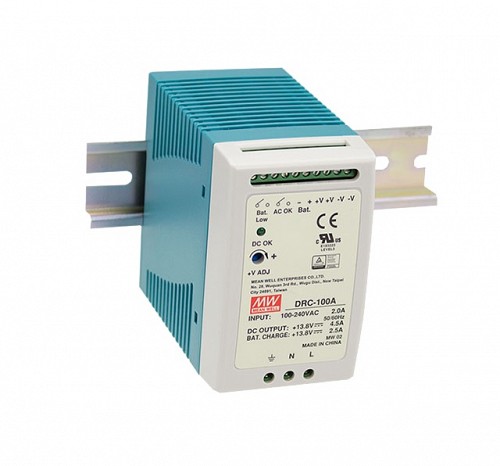

Meanwell DRC-100A DIN Rail Power Supply with UPS Function 12V 100W
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Battery low / Battery reverse polarity protection protection by fuse
- Can be installed on DIN rail TS-35/7.5 or 15
- Alarm signal for AC OK and Battery low (via relay)
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- Description : AC-DC DIN rail single output power supply with battery charger (UPS function); Output 13.8Vdc at 4.5A and 13.8Vdc at 2.5A
- Application : Battery Charging / ITE EN/UL/IEC 60950
- Net weight : 370g
- Technology : AC/DC
- Power Format : DIN rail
- Output Power : 100W
- Output Voltage : 13.8V
- Output Current : 7A
- Input Voltage : 90 - 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 55mm
- Height : 90mm
- Depth :100mm
- Dimming Technology : No Dimming
