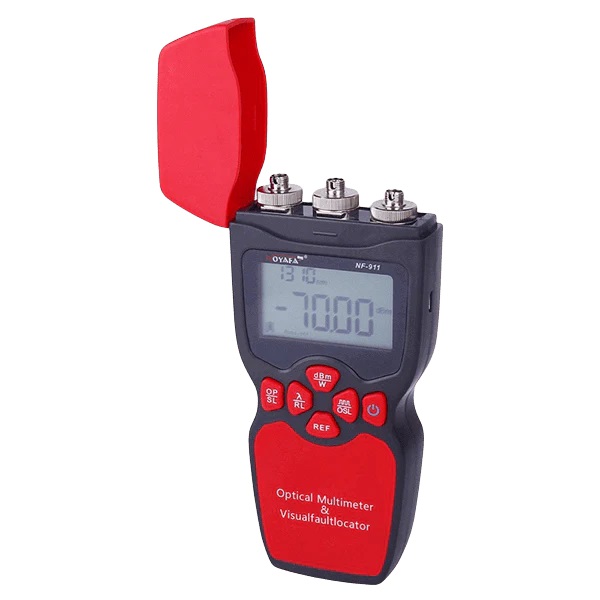

Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C

€89.00 €115.00

Categories: NETWORKING

24/7 SUPPORT

Support every time

ACCEPT PAYMENT

Visa, Paypal, Master

SECURED PAYMENT

100% secured

FREE SHIPPING

Order over €60

15 DAYS RETURN

15 days guarantee

Measurement of the power of the optical sender (dBm and W).
Insertion loss test of optical devices.

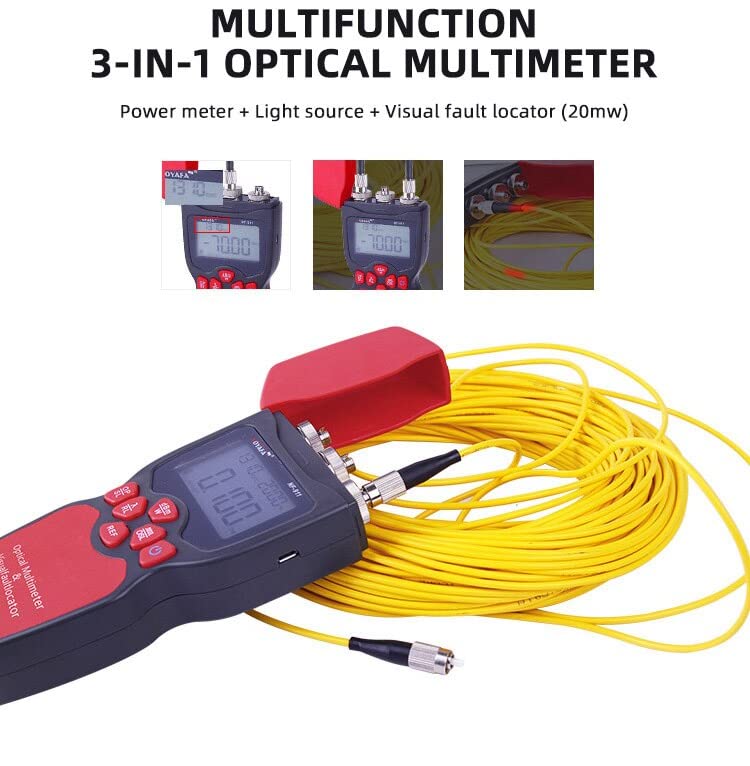

Light source function.

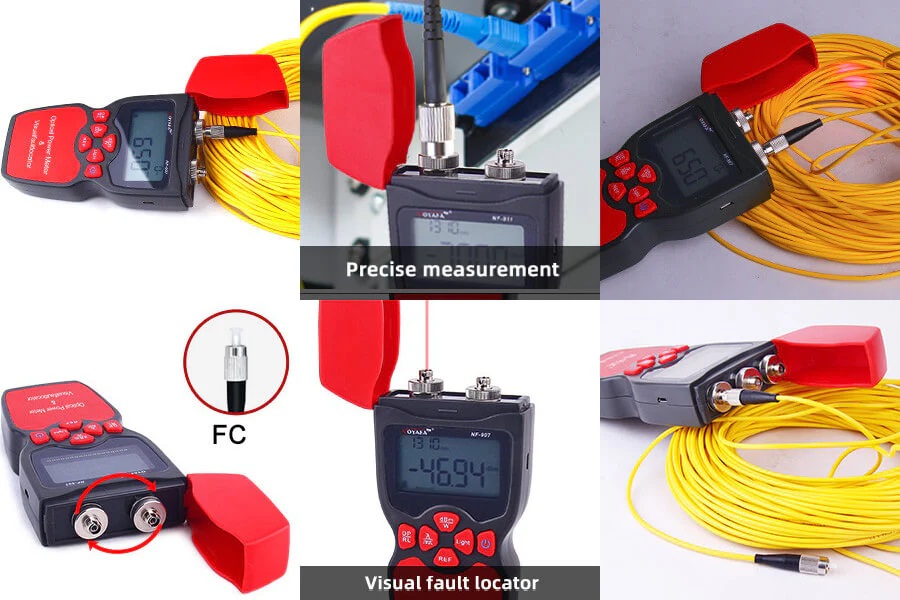

Check fiber breakage, winding,ect.
New REF user-defined.

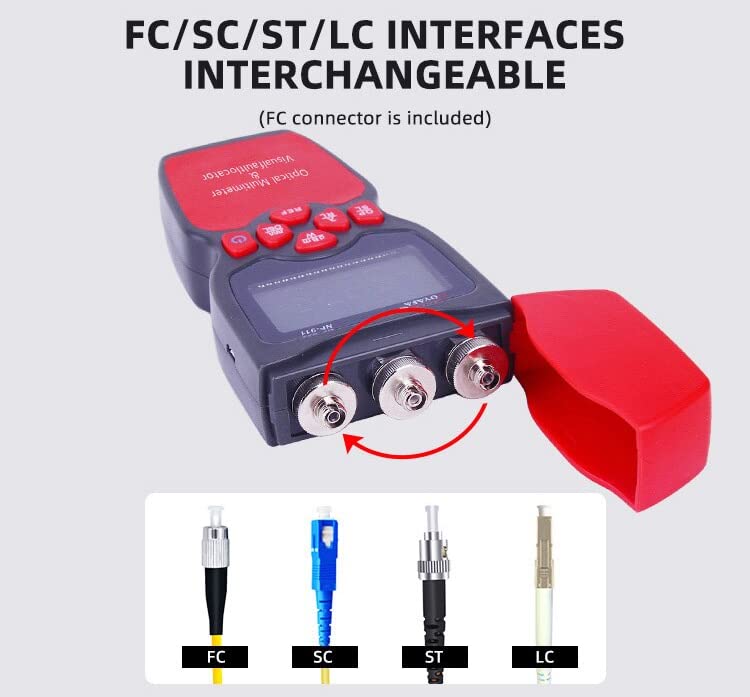

FC/SC/ST general-purpose interface.

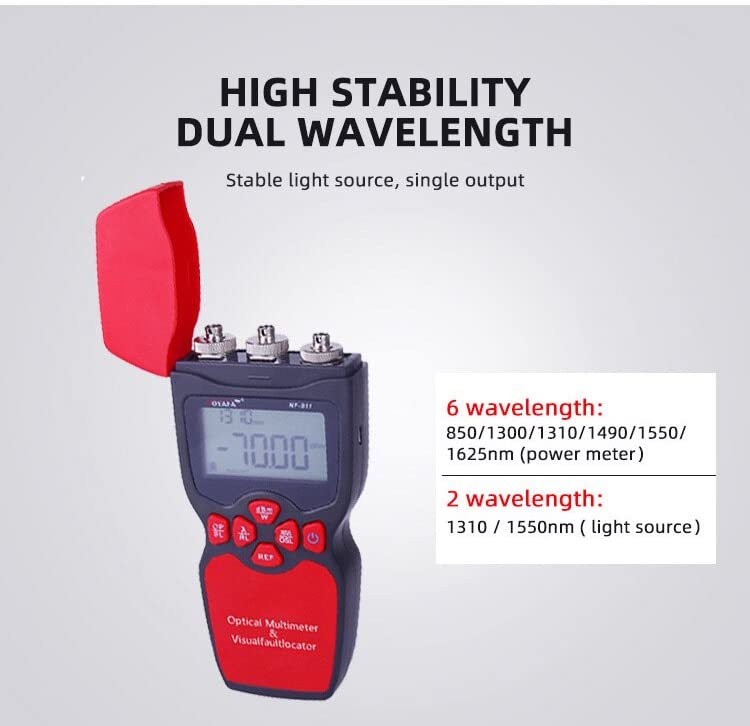

Wavelength: 1310/1490/1550/ 1625nm (power meter).
Wavelength:1310 / 1550nm( light source).
Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.

Specification

Power detecting range(dBm) -50 ~ +26
Wavelenth (nm) 800-1700
Probe InGaAs
Detection limit ∮1.0mm
Standard wavelenth 650±10nm
Display Resolution 0.01dBm
Modulation frequencies CW/270Hz,1Hz,2Hz
Emitter type FP-LD
Emmiting Energy 5mw/ 10mw/ 20mw/ 30mw selectable
Working temp -20 ~ +70℃
Power Supply 1.5V*3pcs
Overall dimension 160x75x32mm
