Sonoff WiFi Smart Switch TH Elite Smart Temperature and Humidity Monitoring THR320D 20A

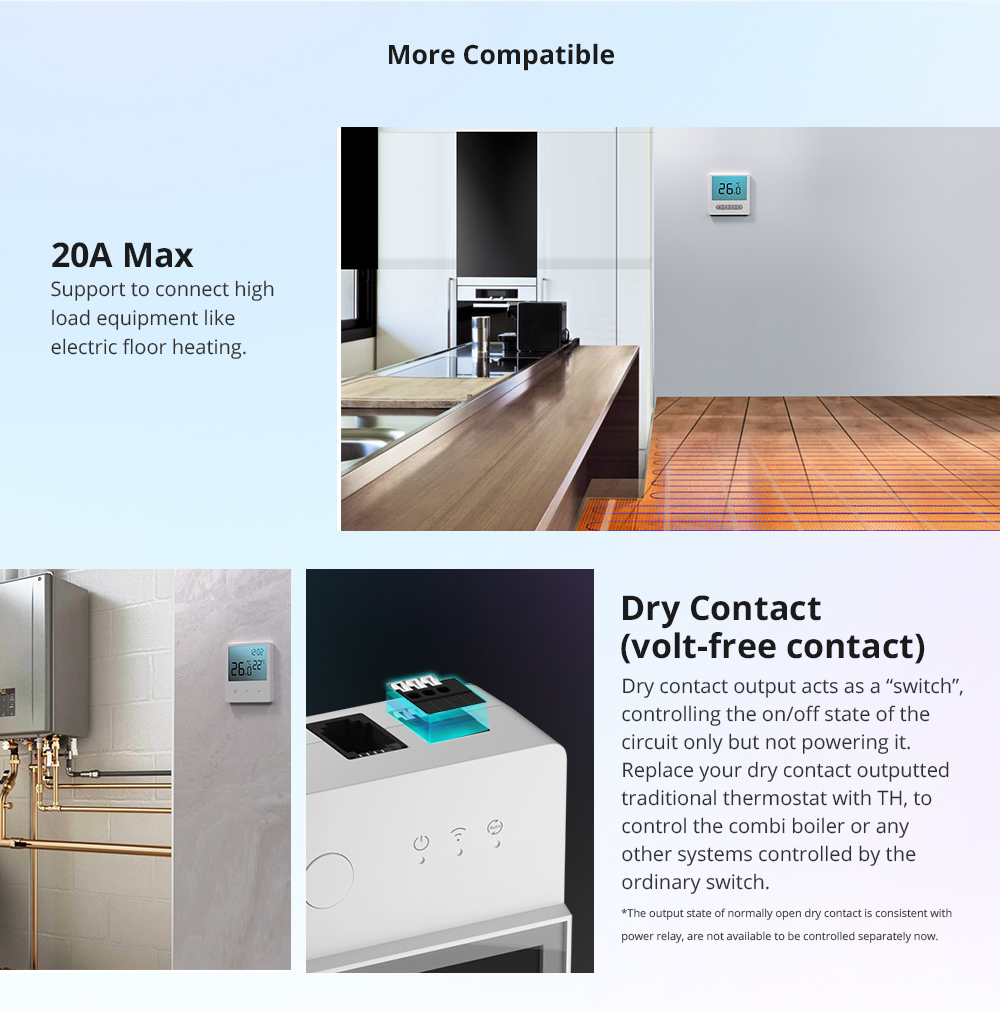

- 20A Max & Dry Contact Output : Support to connect 20A Max high load, dry contact output

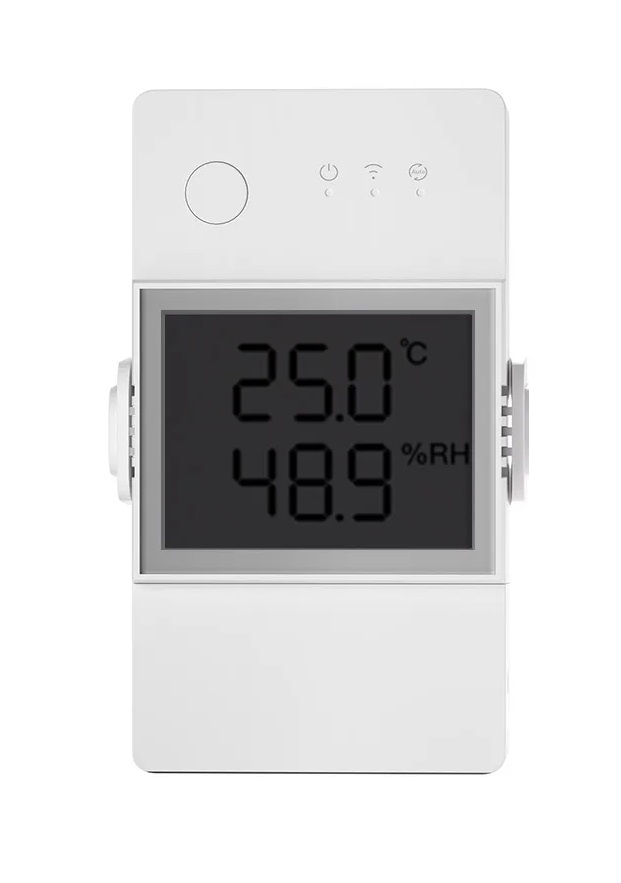

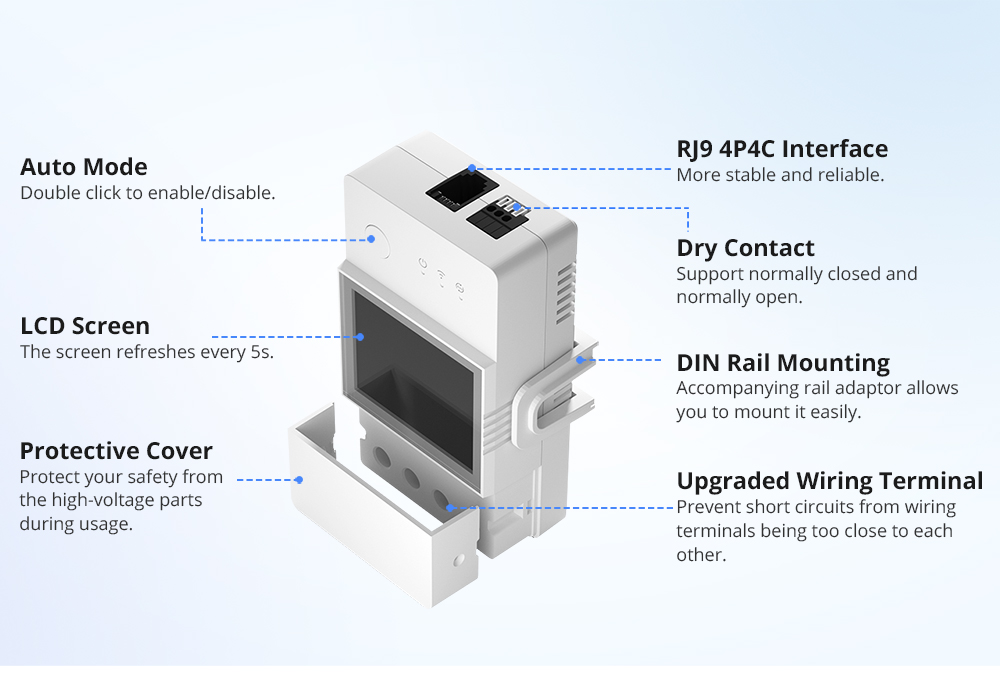

- LCD Screen : Real-time monitoring of temperature and humidity data, the screen refreshed every 5S

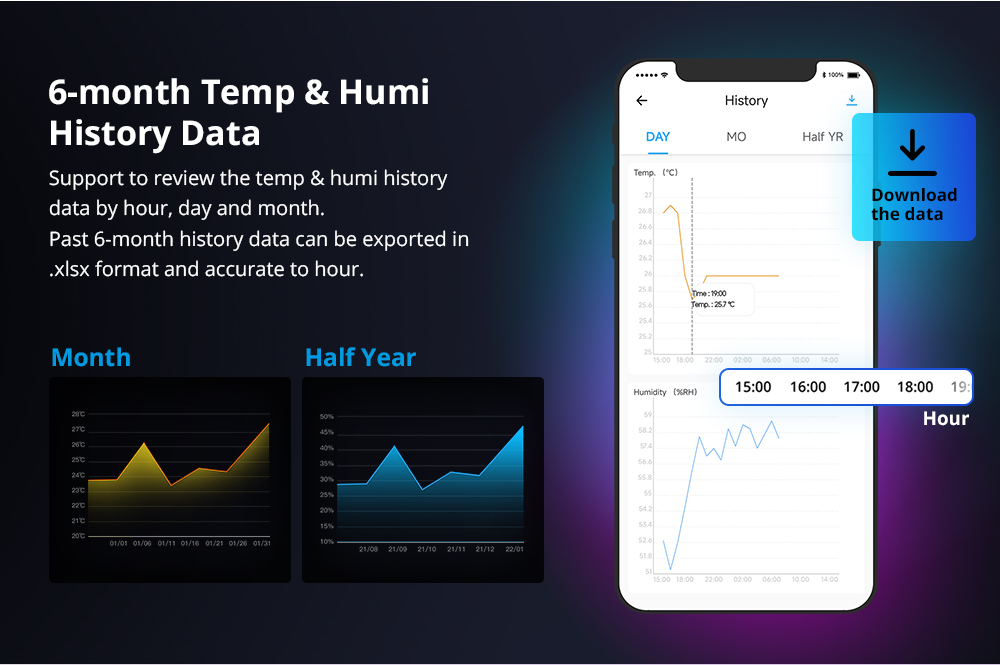

- 6-Month Temp & Humi Historical Data by Hours : Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour
- Local Automatic Control : Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings
- Voice Control and Query : Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice
Note : If you already have the 2.5mm Audio jack sensor (AM2301/DS18B20) and want to use it with the new TH ELITE, you must buy the RJ9 adapter

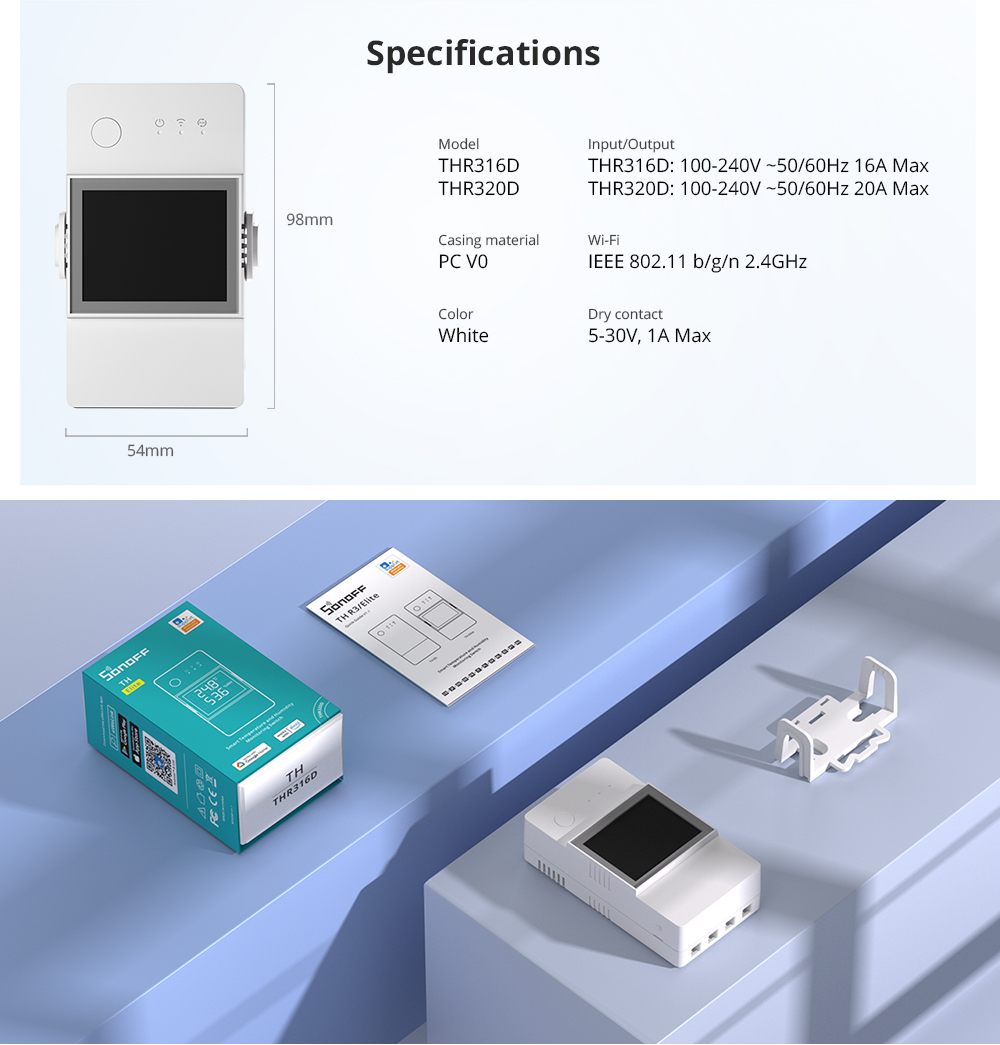

- TH Elite : 20A
- Model : THR320D
- THR320D Input/Output : 100-240V~50/60Hz 20A Max
- MCU : ESP32
- Wi-Fi : IEEE 802.11 b/g/n 2.4GHz
- Dry contact : 5-30V, 1A Max
- TH Elite Working Humidity : 5%-95%RH,non-condensing
- TH Elite Working Temperature : -10°C~40°C (14℉~104℉)

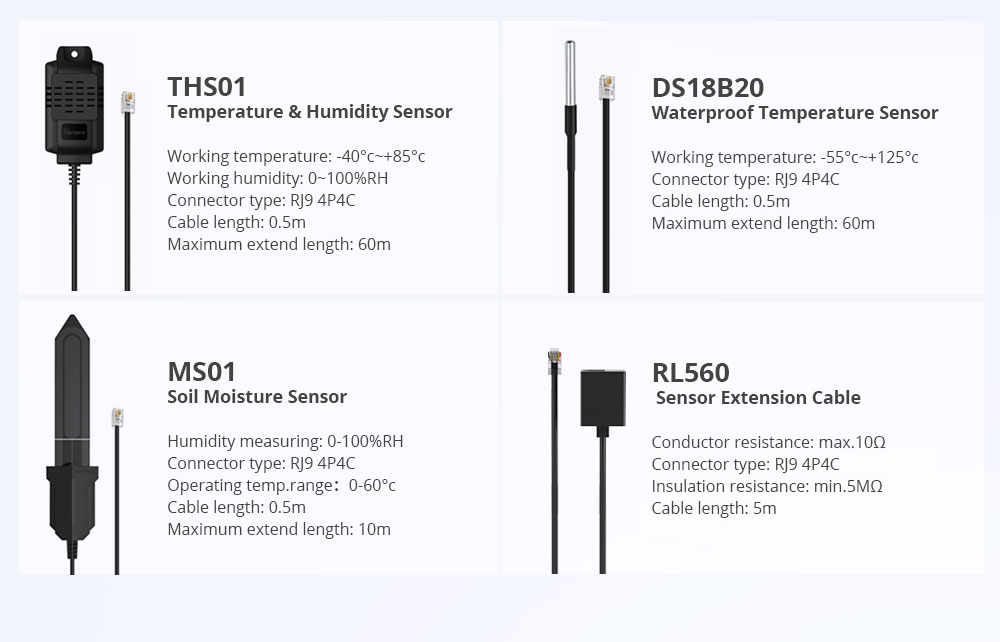

- Supported Sensor : THS01, DS18B20, MS01
- THS01 Working Temp : –40℃~+85°C(-40℉~185℉)
- THS01 Humi Measuring Range : 0~100%RH
- DS18B20 WorkigTemp : -55℃~+125℃(-67℉~257℉)
- MS01 Humi Measuring Range : 0~100%RH
- MS01 Operating Temp Range : 0℃~60°C(32℉~140℉)
- RL560 Conductor Resistance : Max.10Ω
- RL560 Insulation Resistance : Min.5MΩ
- Certification : TUV/CE/UKCA/WWA/FCC/RoHS/SRRC
- Security Mode : WPA/WPA2
- Works with : Amazon Alexa, Google Assistant
- Casing material : PC V0
- Product Size : 98x54x31mm
- Color : White
