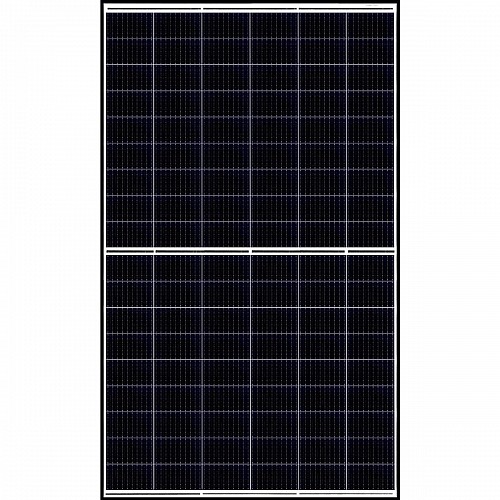

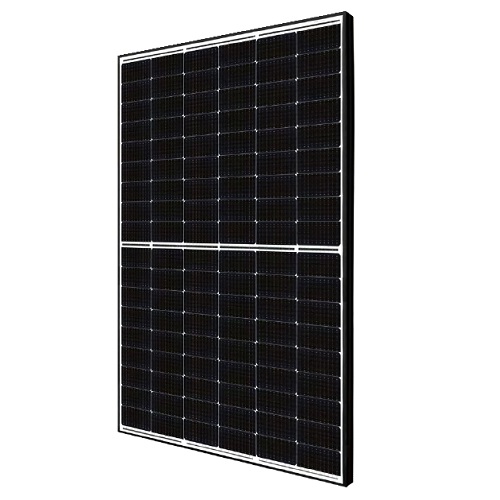

Canadian Solar Panel 410W Black Frame (bulk)
High module power
- 182 mm wafer + dual cell + PERC technology
- 2.7% more energy yield in module lifetime
Lower BOS cost & LCOE cost
- Reduce 5.6% BOS cost
- 4.5% lower LCOE
- Compatible with mainstream trackers
Enhanced reliability
- Comprehensive LID / LeTID mitigation
- technology, up to 50% lower degradation
- Lower hot spot temperature
- Better shading tolerance
* 25 years linear power output warranty
*12 years enhanced product warranty on materials and workmanship
**For residential installation, you gain automatically 25 years Product warranty (instead of classic 12 years)
According to the applicable Canadian Solar Limited Warranty Statement
CS6R 410MS
- Nominal Max. Power (Pmax) : 410 W
- Opt. Operating Voltage (Vmp) : 31.2 V
- Opt. Operating Current (Imp) : 13.15 A
- Open Circuit Voltage (Voc) : 37.2 V
- Short Circuit Current (Isc) : 14.01 A
- Module Efficiency : 21.0%
- Operating Temperature -40°C ~ +85°C
- Max. System Voltage : 1500V (IEC/UL) or 1000V (IEC/UL)
- Module Fire Performance : TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730
- 1000V) or CLASS C (IEC 61730)
- Max. Series Fuse Rating : 25 A
- Application Classification : Class A
- Power Tolerance : 0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C
ELECTRICAL DATA | NMOT*
- CS6R 410MS
- Nominal Max. Power (Pmax) : 307 W
- Opt. Operating Voltage (Vmp) : 29.2 V
- Opt. Operating Current (Imp) : 10.52 A
- Open Circuit Voltage (Voc) : 35.1 V
- Short Circuit Current (Isc) : 11.28 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5,
ambient temperature 20°C, wind speed 1 m/s
MECHANICAL DATA
- Cell Type : Mono-crystalline
- Cell Arrangement : 108 [2 X (9 X 6) ]
- Dimensions : 1722 ˣ 1134 ˣ 30 mm
- Weight : 21.3 kg
- Front Cover : 3.2 mm tempered glass with antireflective coating
- Frame : Anodized aluminium alloy,
- J-Box : IP68, 3 bypass diodes
- Cable : 4 mm2 (IEC), 12 AWG (UL)
- Connector : MC4-EVO2
- Cable Length (Including Connector) : Portrait: 350 mm (+) / 250
- mm (-); landscape: 1100mm
TEMPERATURE CHARACTERISTICS
- Temperature Coefficient (Pmax) : -0.34 % / °C
- Temperature Coefficient (Voc) : -0.26 % / °C
- Temperature Coefficient (Isc) : 0.05 % / °C
- Nominal Module Operating Temperature : 41 ± 3°C
