AJAX

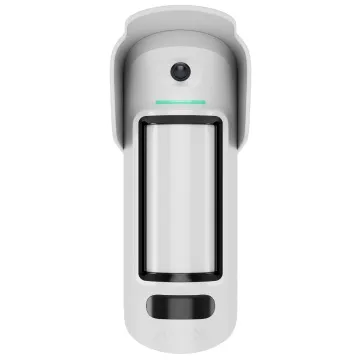

AJAX BASELINE PIR Outdoor MotionCam HighMount white
Κωδικός παραγγελίας: 28344EAN: 4823114064197
- Frequency Bands:866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz
- Maximum Effective Radiated Power:Up to 25 mW
- Radio signal modulation:GFSK
- Radio communication range:Up to 1,700 m
- Sensitive Elements:2 × PIR sensor / 1 × K-band microwave sensor
- Όλα τα χαρακτηριστικά
650,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
Wireless PIR motion detector with extended photo verification possibilities. For outdoor installation at a height of 2–4 m.
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
It is recommended to install the detector at a height of 2–4 m.
The pet immunity feature is not available for this device.
The device is designed for outdoor and indoor use.
Χαρακτηριστικά
- Frequency Bands
- 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz
- Maximum Effective Radiated Power
- Up to 25 mW
- Radio signal modulation
- GFSK
- Radio communication range
- Up to 1,700 m
- Sensitive Elements
- 2 × PIR sensor / 1 × K-band microwave sensor
- Operating Frequency
- 24 GHz
- Motion detection distance
- Up to 15 m
- Motion detection angle
- Horizontal: 90°
- Motion Detection Speed
- From 0.3 to 2.0 m/s
- Sensitivity
- 3 levels
- False Alarm Prevention
- SmartDetect (software algorithm)
- Temperature Compensation
- Effective movement detection in temperatures from −25 °C to +60 °C
- Adjustable Photo Resolution
- 640 × 480 px / 320 × 240 px (default)
- Camera viewing angles
- Horizontal: 115° / Vertical: 84°
- HDR Image
- Improves accuracy of details in bright and dark scenes.
- IR Backlight
- Supports night photography and low light conditions.
- Magnetometer
- detects attempts to tilt or shift the detector or detach it from the surface
- Anti-masking system
- detects attempts to block the detector view
- Battery
- 6 × CR123A(Pre-installed.)
- Type
- type C
- Calculated battery life
- up to 3 years
- Detector operating voltage range
- 3.8−6.5 V⎓
- Detector nominal operating voltage
- 6 V⎓
- Quiescent detector current consumption at nominal voltage
- 45 μA
- Maximum detector current consumption at nominal voltage
- 1,200 mA
- Full battery capacity
- 4,800 mAh
- Low Battery Voltage
- 4.2 V⎓
- Low battery recovery voltage
- 5.0 V⎓
- End-of-life battery voltage
- 3.8 V⎓
- End-of-life battery capacity
- 300 mAh
- External supply operating voltage
- 12−24 V⎓
- Dimensions with the swivel mount
- 234 × 98 × 230 mm
- Dimensions without the swivel mount
- 234 × 98 × 137 mm
- Weight with the swivel mount
- 1,010 g
- Weight without the swivel mount
- 620 g
- Operating temperature range
- From −25 °C to +60 °C
- Operating Humidity
- up to 95%
- Protection class
- IP55
