AJAX FIBRA Keypad White

Κωδικός παραγγελίας: 25507

Fibra communication technology:Two-way communication, Advanced anti-sabotage , Instant notifications, Remote configuration via the app
Line Connection:4-core cable
Fibra line length:up to 2,000 meters (When using the U/UTP cat.5 twisted pair)
Sensor Type:Capacitive
Security mode indication:Only when KeyPad Fibra is active.
Όλα τα χαρακτηριστικά

128,00 €με ΦΠΑ

Μη διαθέσιμο

Περιγραφή

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact [email protected] for more information on how to obtain the certification license

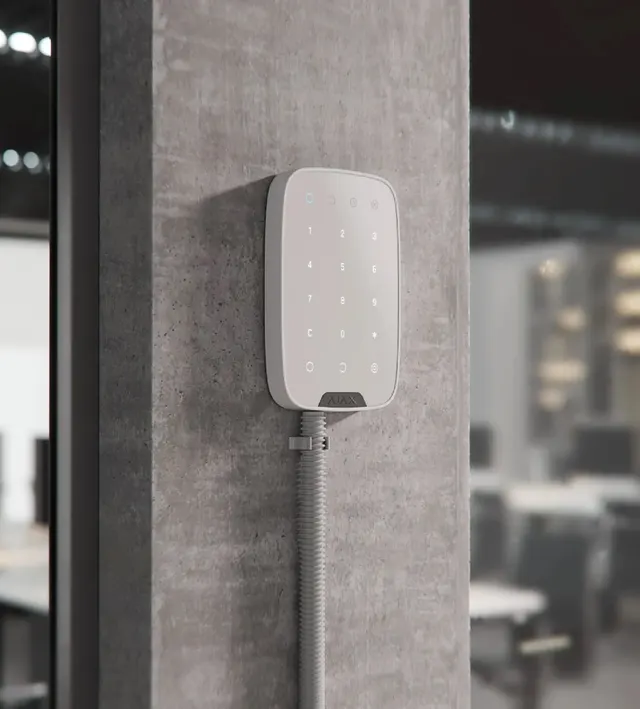

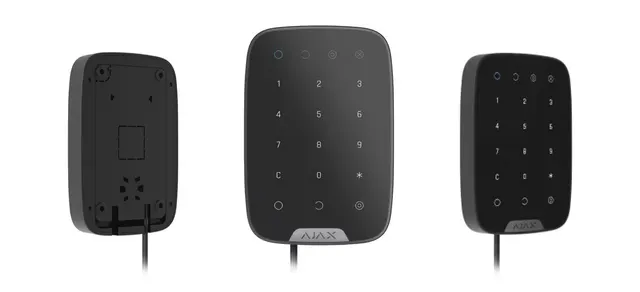

KeyPad Fibra is a wired touch keypad of the Ajax security system. Controls the security modes and Night mode. Supports duress code and protected from access code guessing. When it is active, the LED indication notifies about the security mode
KeyPad Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
KeyPad Fibra is part of the wired Fibra devices line. The installation, sale, and administration of these devices are performed only by accredited Ajax partners

The keypad is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided. Integration with other security systems is not provided either

Χαρακτηριστικά

Fibra communication technology: Two-way communication, Advanced anti-sabotage , Instant notifications, Remote configuration via the app
Line Connection: 4-core cable
Fibra line length: up to 2,000 meters (When using the U/UTP cat.5 twisted pair)
Sensor Type: Capacitive
Security mode indication: Only when KeyPad Fibra is active.
Duress code: 50 personal codes (One per each user)
1 general code: One per KeyPad Fibra
Functional button: Panic button / Mute fire alarms
ACE Type: Type B
Protection Against Forgery: Device authentication
Keypad’s operating voltage range: 5−27 V⎓, up to 230 mW (The detector is powered by the control panel)
Keypad’s nominal operating voltage: 24 V⎓
Dimensions: 150 × 103 × 19 mm
Weight: 148 g
Operating temperature range: from −10°C to +40°C
Operating Humidity: up to 75%
Protection class: IP50
