Anycubic

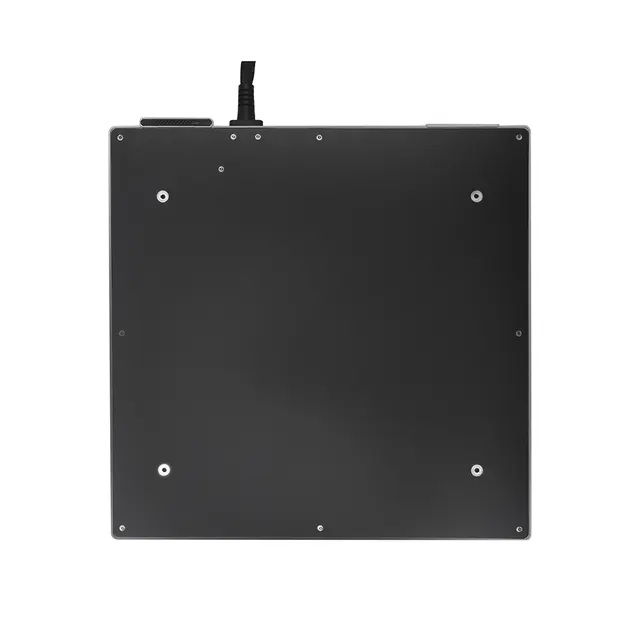

anycubic-sp-kobra-3-maxcombo-hotbed
Κωδικός παραγγελίας: 30785
- Compatible Models:Anycubic Kobra 3 / Kobra 3 Combo / Kobra 3 Max
- Maximum Operating Temp:Up to 100°C
- Operating Voltage:24V DC / High-Output Heating Trace
- Net Item Weight:1,150 g to 1,350 g (1.15 kg – 1.35 kg)
- Gross Shipping Weight:1,600 g to 1,800 g (including heavy protective box)
- Όλα τα χαρακτηριστικά
162,99 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Χαρακτηριστικά
- Compatible Models
- Anycubic Kobra 3 / Kobra 3 Combo / Kobra 3 Max
- Maximum Operating Temp
- Up to 100°C
- Operating Voltage
- 24V DC / High-Output Heating Trace
- Net Item Weight
- 1,150 g to 1,350 g (1.15 kg – 1.35 kg)
- Gross Shipping Weight
- 1,600 g to 1,800 g (including heavy protective box)
- Build Area Dimensions
- 250 x 250 mm (Standard Kobra 3) / Extended size for Max variants.
- Bed Assembly Dimensions
- 265 x 265 x 25 mm (L × W × H including mounting points & harness)
- Packaging Dimensions
- 310 x 300 x 60 mm
- Materials
- Precision-machined aluminum substrate, high-temp silicone wiring, magnetic polymer sheet.
- Perform Auto-Bed Leveling (ABL) Post-Replacement
- After mounting a replacement bed assembly, run the printer's automatic mesh bed leveling and Z-offset calibration routine to map out any minor micro-variations.
- Bed PID Tuning
- Execute a Bed PID Calibration from the maintenance menu to allow the printer's firmware to calibrate the duty cycle of the new heating element for tight temperature control.
- Check Y-Axis Belt & V-Wheels/Rails
- When swapping the hotbed, verify that the bed carriage screws are torqued evenly to avoid twisting the aluminum plate, which can cause unnatural bed tilt.
