Artsound SmartZone4 Multiroom Amplifier 4xZones 2x60W@8ohm

The Smart Zone 4 AMP is a streaming amplifier for 4 zones. For each zone, you get to choose the music source: internet radio, Spotify, Deezer, Tidal, Airplay ... let yourself go. Want to plug in additional external sources? Plenty of inputs and outputs to choose from! And if 4 zones aren't enough, you can also combine several Smart Zone 4 AMPs or expand with other devices from the ArtSound Smart family. You see, everything is there to fill your whole house with music. You control the Smart Zone 4 AMP with the super handy app on your smartphone or tablet. So, connect your speakers and enjoy!

• Streaming amplifier for 4 zones - class D
• 4 independent zones
• Output capacity: 2 x 60W RMS (8Ω), 2 x 105W RMS (4Ω)
• Bridge mode (2 - 8 Ω)
• Internet radio: > 10,000 stations worldwide
• Bluetooth 5.0
• Music services: Spotify Connect, TuneIn, vTuner, Deezer, Tidal, Qobuz etc.
• Apple AirPlay NAS via UPnP/dlna
• Input stereo RCA, optical, coaxial, USB (mass storage)
• Output stereo RCA, coaxial  tone control volume, treble, bass
• functions alarm function / sleep timer
• Internet connection: LAN 10/100Mbit + passthrough
• 24-bit/192kHz PCM DAC
• Control: 4STREAM app (iOS + Android) 12V Master Trigger-output
• Power supply: 110V - 240V
• Dim. (h x w x d) 90 x 430 x 300mm
• Weight 9kg

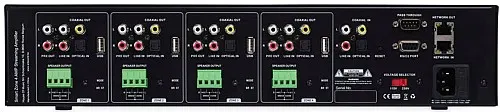

Connections

• 5 x Stereo RCA Line Input
• 4 x pre out
• 4 x USB-A input
• 2 x RJ45 Ethernet port
• 4 x optical input (up to 24 bit / 192 kHz)
• 5 x coaxial output (up to 16 bits / 44.1 kHz multi-zone or 24 bits / 192 kHz main)
• RS232

Contents of the box

• Smart Zone 4 AMP
• Rack mounting bracket x2
• 12 V / 2 A power adapter
• Manual
