Canadian Solar

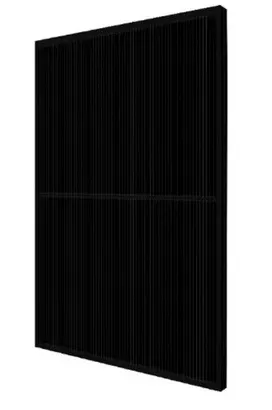

Canadian Solar Panel 405W All Black (bulk)
Κωδικός παραγγελίας: 25875
- Nominal Max. Power (Pmax):303 W
- Opt. Operating Voltage (Vmp):29 V
- Opt. Operating Current (Imp):10.45 A
- Open Circuit Voltage (Voc):34.7 V
- Short Circuit Current (Isc):11.23 A
- Όλα τα χαρακτηριστικά
149,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
Important Note:
- These solar panels are for professional use only

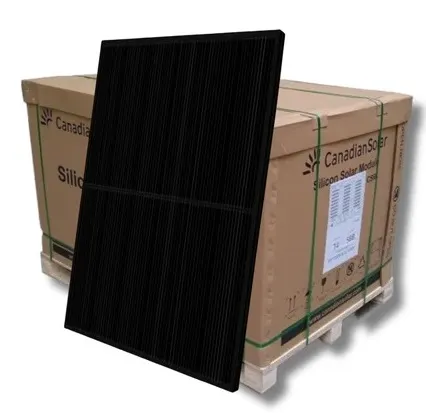

- Panels are supplied in bulk without external packaging
High Power & Small Size
· Module Power up to 405 W
· Cells: 182mm half-cut mono-PERC
· Dimensions: 1722 x 1134 x 30 mm
Module Efficiency up to 20.7 %
· Maximize the use of rooftop space
Aesthetic Appearance
· ALL-BLACK for homogenous appearance
· Especially suitable for residential rooftops
* 25 years linear power output warranty
*12 years enhanced product warranty on materials and workmanship
**For residential installation, you gain automatically 25 years Product warranty (instead of classic 12 years)
According to the applicable Canadian Solar Limited Warranty Statement
Χαρακτηριστικά
- Nominal Max. Power (Pmax)
- 303 W
- Opt. Operating Voltage (Vmp)
- 29 V
- Opt. Operating Current (Imp)
- 10.45 A
- Open Circuit Voltage (Voc)
- 34.7 V
- Short Circuit Current (Isc)
- 11.23 A
- Module Efficiency
- 20.7%
- Max. System Voltage
- 1000V (IEC/UL)
- Module Fire Performance
- TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
- Max. Series Fuse Rating
- 25 A
- Application Classification
- Class A
- Power Tolerance
- 0 ~ + 10 W
- Cell Type
- Mono-crystalline
- Cell Arrangement
- 108 [2 X (9 X 6) ]
- Dimensions
- 1722 ˣ 1134 ˣ 30 mm
- Weight
- 21.3 kg
- Front Cover
- 3.2 mm tempered glass with antireflective coating
- Frame
- Anodized aluminium alloy,
- J-Box
- IP68, 3 bypass diodes
- Cable
- 4 mm2 (IEC), 12 AWG (UL)
- Connector
- MC4
- Cable Length (Including Connector)
- Portrait: 350 mm (+) / 250
- mm (-); landscape
- 1100mm
- Temperature Coefficient (Pmax)
- -0.34 % / °C
- Temperature Coefficient (Voc)
- -0.26 % / °C
- Temperature Coefficient (Isc)
- 0.05 % / °C
- Nominal Module Operating Temperature
- 42 ± 3°C
