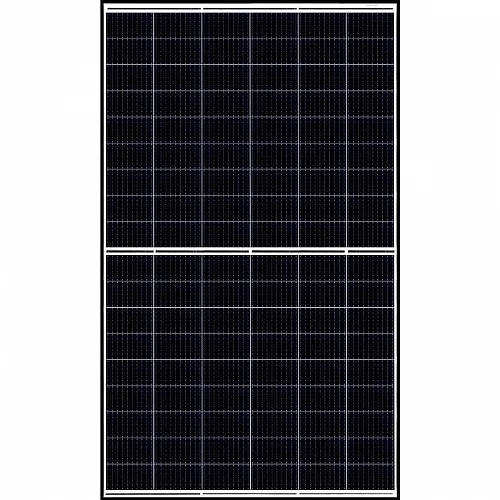

Canadian Solar Panel 410W Black Frame (bulk)

Canadian Solar Panel 410W Black Frame (bulk)

High module power

• 182 mm wafer + dual cell + PERC technology
• 2.7% more energy yield in module lifetime

Lower BOS cost & LCOE cost

• Reduce 5.6% BOS cost
• 4.5% lower LCOE
• Compatible with mainstream trackers

Enhanced reliability

• Comprehensive LID / LeTID mitigation
• technology, up to 50% lower degradation
• Lower hot spot temperature
• Better shading tolerance

* 25 years linear power output warranty

*12 years enhanced product warranty on materials and workmanship

**For residential installation, you gain automatically 25 years Product warranty (instead of classic 12 years)

According to the applicable Canadian Solar Limited Warranty Statement

CS6R 410MS

• Nominal Max. Power (Pmax) : 410 W
• Opt. Operating Voltage (Vmp) : 31.2 V
• Opt. Operating Current (Imp) : 13.15 A
• Open Circuit Voltage (Voc) : 37.2 V
• Short Circuit Current (Isc) : 14.01 A
• Module Efficiency : 21.0%
• Operating Temperature -40°C ~ +85°C
• Max. System Voltage : 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance : TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730
• 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating : 25 A
• Application Classification : Class A
• Power Tolerance : 0 ~ + 10 W

* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C

ELECTRICAL DATA | NMOT*

• CS6R  410MS
• Nominal Max. Power (Pmax) : 307 W
• Opt. Operating Voltage (Vmp) : 29.2 V
• Opt. Operating Current (Imp) : 10.52 A
• Open Circuit Voltage (Voc) : 35.1 V
• Short Circuit Current (Isc) : 11.28 A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5,
ambient temperature 20°C, wind speed 1 m/s

MECHANICAL DATA

• Cell Type : Mono-crystalline
• Cell Arrangement :  108 [2 X (9 X 6) ]
• Dimensions : 1722 ˣ 1134 ˣ 30 mm
• Weight : 21.3 kg
• Front Cover  : 3.2 mm tempered glass with antireflective coating
• Frame : Anodized aluminium alloy,
• J-Box : IP68, 3 bypass diodes
• Cable : 4 mm2 (IEC), 12 AWG (UL)
• Connector : MC4-EVO2
• Cable Length (Including Connector) : Portrait: 350 mm  (+) / 250
• mm  (-); landscape: 1100mm

TEMPERATURE CHARACTERISTICS

• Temperature Coefficient (Pmax) : -0.34 % / °C
• Temperature Coefficient (Voc) : -0.26 % / °C
• Temperature Coefficient (Isc) : 0.05 % / °C
• Nominal Module Operating Temperature : 41 ± 3°C
