Chord
Chord DI-A1 Active Direct Injection Box 173.293UK
Κωδικός παραγγελίας: 28057EAN: 5015972209370
- Power Supply:9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
- Input:6.3mm jack (unbalanced)
- Outputs:XLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance:>100k Ohms
- Output impedance:600 Ohms
- Όλα τα χαρακτηριστικά
20,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
- Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
- Ground float option for ground lift with RF/mains filter
- Ground lift option isolates signal ground without filter
- 3 pad settings for level matching
Χαρακτηριστικά
- Power Supply
- 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
- Input
- 6.3mm jack (unbalanced)

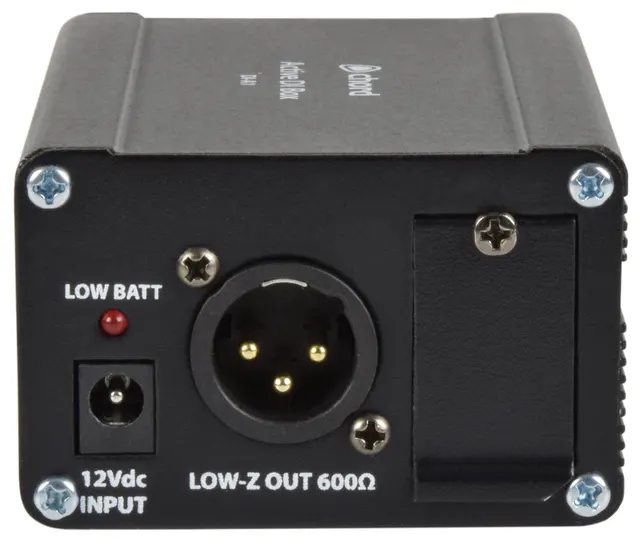

- Outputs
- XLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance
- >100k Ohms
- Output impedance
- 600 Ohms

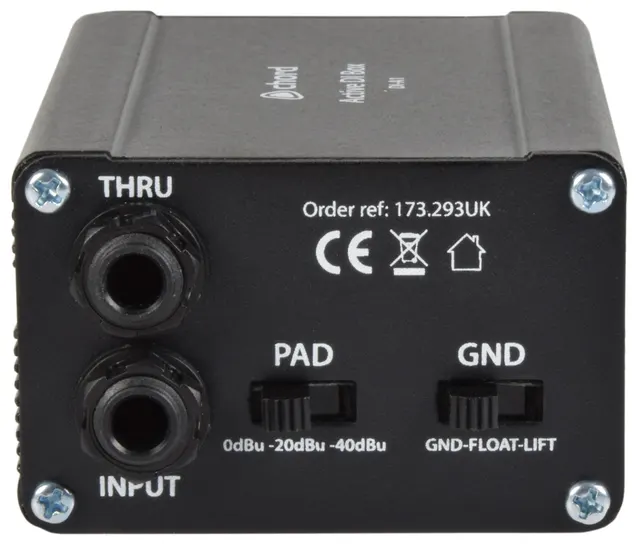

- Controls
- 0/-20/-40dBu pad & Ground-Float-Lift switch

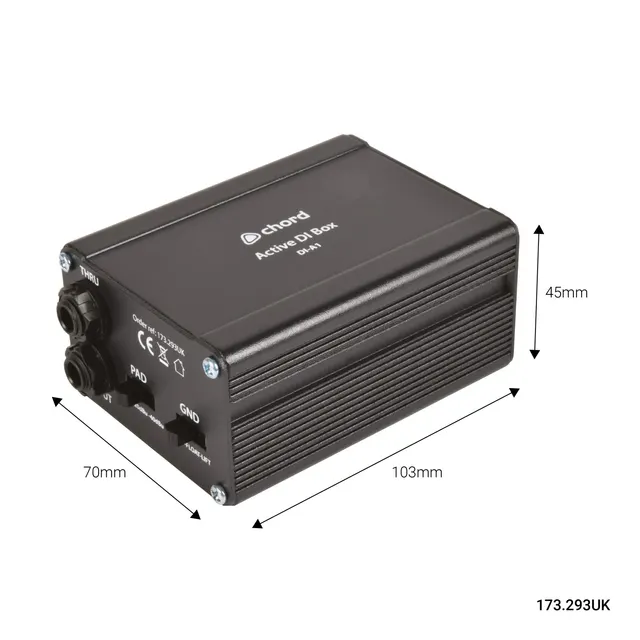

- Dimensions
- 103 x 70 x 45mm
- Weight
- 243g
