Citronic
Citronic CSP410 10 Channel Mixer & Amplifier 400W with DSP 170.843UK
Κωδικός παραγγελίας: 28321EAN: 5015972196182
- Inputs:Mic/Line : 6 x balanced XLRF/TRS jack
- Output power:8 Ohms : 2 x 130Wrms
- Output power @ 4 Ohms:2 x 200Wrms
- Speaker:outputs : L+R SPK connectors
- Effects:16 program DSP (24-bit sigma-delta, 40khz)
- Όλα τα χαρακτηριστικά
369,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

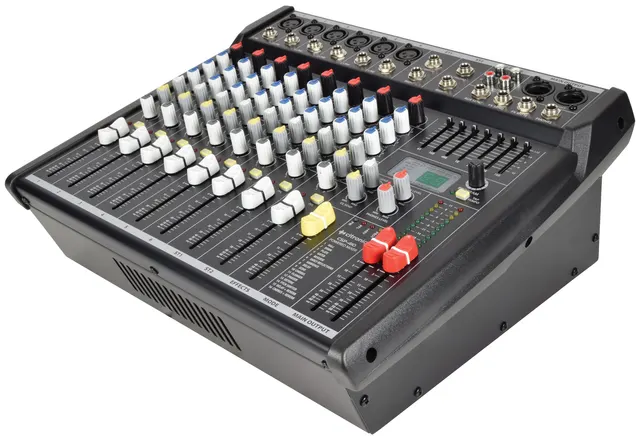

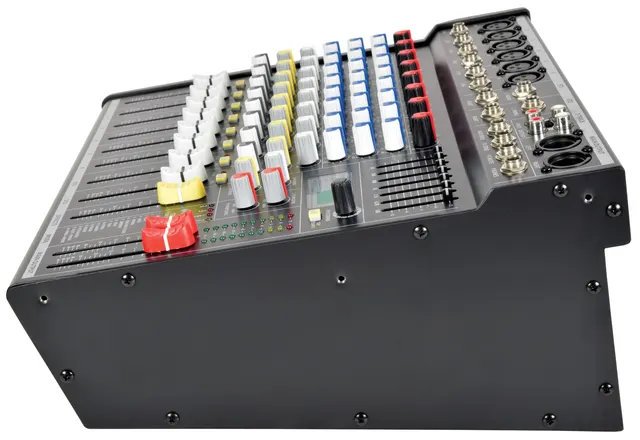

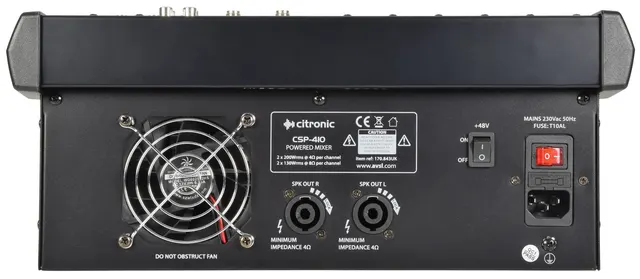

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
In the Box
- CSP-series powered mixer
- IEC power lead(s)
Χαρακτηριστικά
- Inputs
- Mic/Line : 6 x balanced XLRF/TRS jack
- Output power
- 8 Ohms : 2 x 130Wrms
- Output power @ 4 Ohms
- 2 x 200Wrms
- Speaker
- outputs : L+R SPK connectors
- Effects
- 16 program DSP (24-bit sigma-delta, 40khz)
- Phantom Power
- +48V (XLR inputs)
- Frequency response
- 20Hz-30kHz (0.5dB)
- Input level
- +24dBu
- Output level
- line : +26dBu
- CMRR
- >74dB (mic 1kHz)
- THD +N
- <0.01% (channel to main out)
- Crosstalk
- >85dB (fader mute), >82dB (channel)
- Noise rms
- 22Hz-22kHz : -122dBu (EIN), -82dBu (mix)
- EQ
- low : 80Hz ±15dB shelving
- Input impedance
- line (balanced) : 10k Ohms
- Sensitivity
- line : -40 to +14dBu
- 2-track
- 2 x RCA in & out (-2dBu)
- Output impedance
- <75 Ohms
- Headphone output
- 6.3mm jack, 30-600 Ohms
- Power Supply
- 230Vac 50Hz (IEC)
- Power consumption
- 600W
- Fuse
- T10A (5 x 20mm, 250V)
- Weight
- 7.35kg

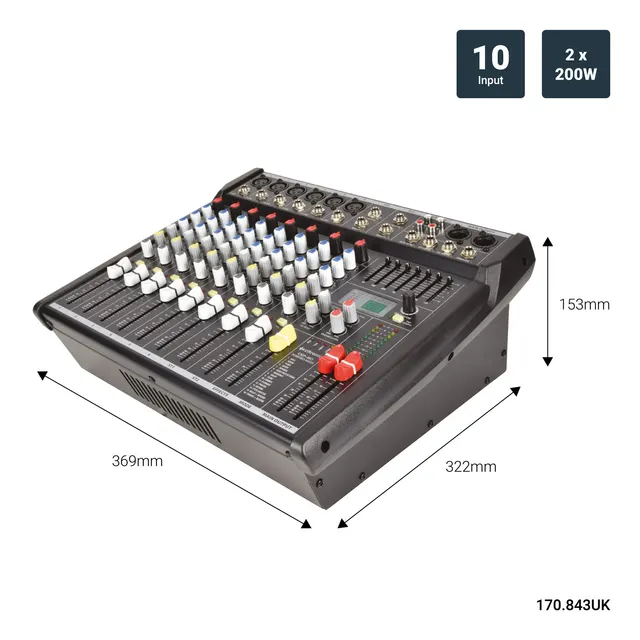

- Dimensions
- 369 x 322 x 153mm
