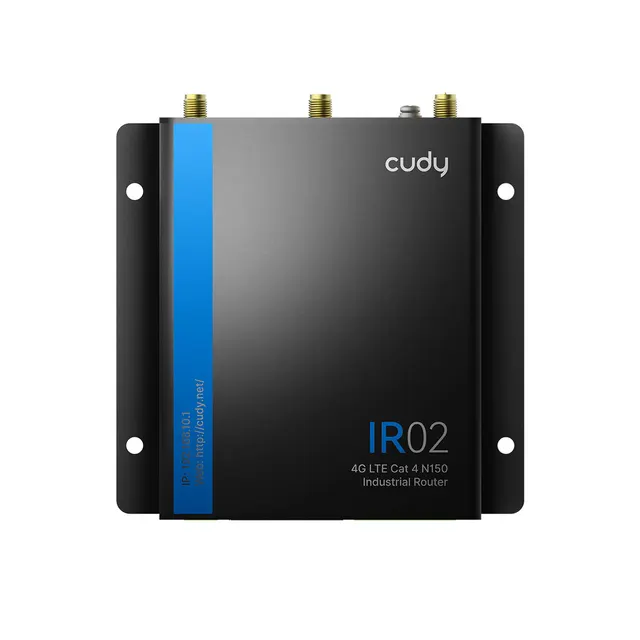

Cudy Router 4G LTE CAT4 N150 Industrial Wi-Fi Dual-Sim IR02_EU

Χαρακτηριστικά

<strong>Processor

</strong> 580 MHz Single-Core MIPS24KEc

<strong>Flash Memory

</strong> 16 MB NOR

<strong>RAM

</strong> 128 MB DDR2

<strong>Cellular Standard

</strong> 4G LTE Cat 4 (Max 150 Mbps DL / 50 Mbps UL)

<strong>SIM Slots

</strong> 2 × Nano-SIM Slots (2FF)

<strong>Cellular Antennas

</strong> 2 × Detachable External LTE Antennas (SMA Female, 1.5 m Cable)

<strong>Wi-Fi Standard

</strong> IEEE 802.11n/b/g (Wi-Fi 4), 2.4 GHz

<strong>Signal Rate

</strong> 2.4 GHz: Up to 150 Mbps

<strong>Wi-Fi Antenna

</strong> 1 × Detachable External Antenna (RP-SMA Female)

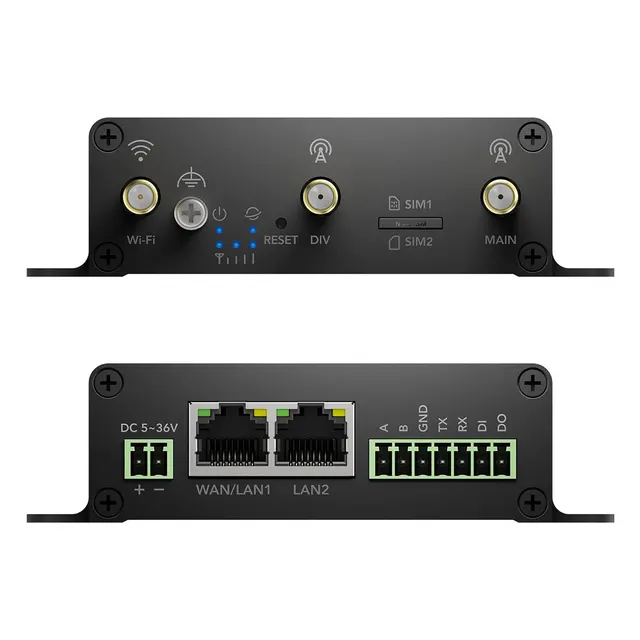

<strong>Ethernet Ports

</strong> 2 × 10/100 Mbps Fast Ethernet Ports (Configurable LAN/WAN)

<strong>Industrial Interfaces

</strong> 1 × Serial Port (RS-232/RS-485 via 7-pin Terminal Block), 1 × Digital Galvanically Isolated Input, 1 × Relay Output

<strong>VPN Client & Server Support

</strong> WireGuard, OpenVPN, IPsec, PPTP, L2TP

<strong>Power Supply

</strong> 2-Pin DC Terminal Block (5 V to 36 V DC Input)

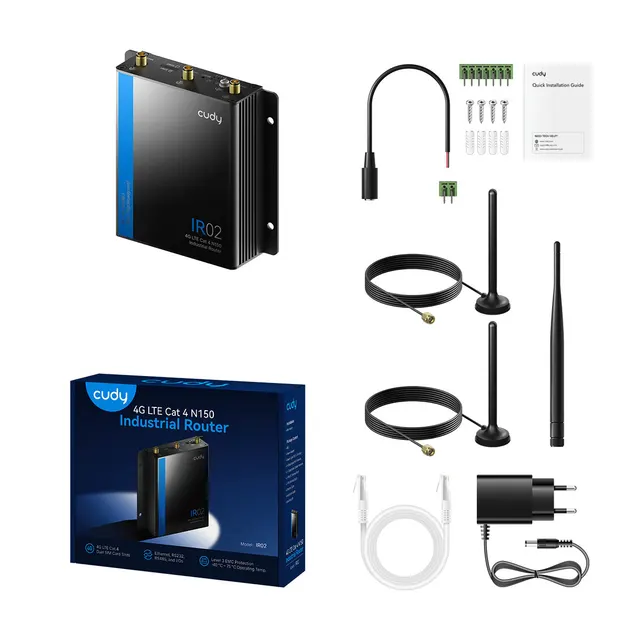

<strong>Power Adapter

</strong> Included External Power Supply (12 V / 1 A)

<strong>Power Consumption

</strong> 1.0 W (Idle), 7.0 W (Maximum)

<strong>Ingress Protection & EMC

</strong> IP30 Rating, IEC/EN 61000-4 Level 3 EMC Protection

<strong>Mounting Options

</strong> Wall-Mounting, DIN-Rail Mounting (Optional Adapter)

<strong>Operating Temperature

</strong> -40 °C to 75 °C

<strong>Storage Temperature

</strong> -40 °C to 85 °C

<strong>Operating Humidity

</strong> 5% to 95% Non-condensing

<strong>Storage Humidity

</strong> 5% to 95% non-condensing

<strong>Dimensions (W × D × H)

</strong> 104.4 mm × 103 mm × 28.3 mm

<strong>Device Weight

</strong> 218.6 g
