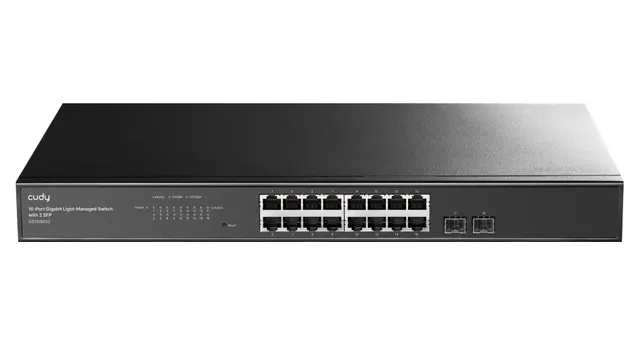

Cudy Switch Gigabit Ethernet Cloud Easy-Managed 16-Port + 2SFP GS1016ES2

Χαρακτηριστικά

<strong>Model Version

</strong> GS1016ES2 1.0

<strong>Interfaces

</strong> 16 × 10/100/1000 Mbps RJ45 Ports, 2 × 1.25G SFP Slots

<strong>Memory / Storage

</strong> 16 MB NOR Flash

<strong>Switching Capacity

</strong> 36 Gbps

<strong>Packet Forwarding Rate

</strong> 26.78 Mpps

<strong>MAC Address Table

</strong> 8192 entries

<strong>Packet Buffer

</strong> 4 Mbit

<strong>Jumbo Frame

</strong> 15 KB

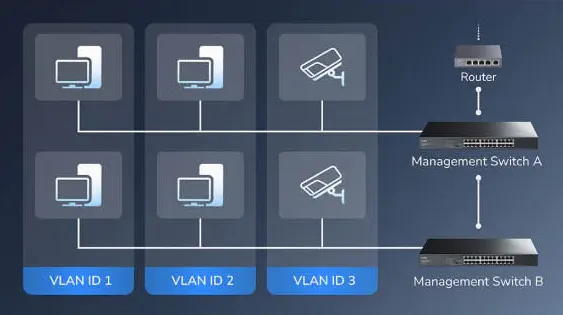

<strong>VLAN Support

</strong> Up to 4096 VLAN IDs (802.1Q, MTU, Port-Based)

<strong>L2 Features

</strong> IGMP Snooping, DHCP Snooping, Loop Prevention, Loop Detection, Port Mirroring, Static Link Aggregation

<strong>Protocols

</strong> IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1q, IEEE 802.1ab

<strong>LED Indicators

</strong> Power, Speed/Link/Act per Ethernet port

<strong>Physical Buttons

</strong> Reset Button

<strong>Power Method

</strong> AC Internal Power Inlet (100–240V AC, 50/60Hz)

<strong>Max Power Consumption

</strong> 7.8 W

<strong>Idle Power Consumption

</strong> 4.5 W

<strong>Casing Material

</strong> Metal

<strong>Installation

</strong> Desktop or Rackmount (via included brackets)

<strong>Dimensions (W × D × H)

</strong> 440 × 180 × 44 mm

<strong>Product weight

</strong> 1691.5 g

<strong>Operating Temperature

</strong> 0 °C to 40 °C

<strong>Operating Humidity

</strong> 10% to 90% non-condensing
