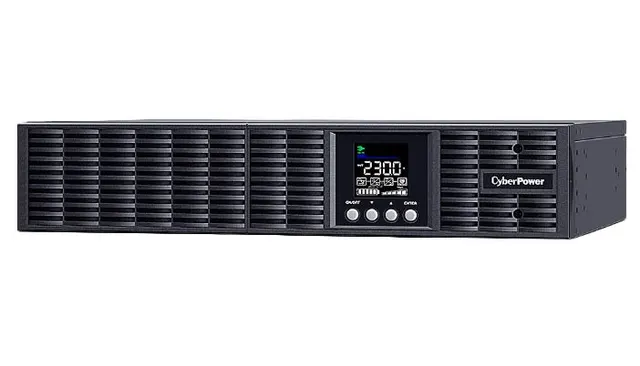

CyberPower ONL Rackmount UPS OLS1000ERT2UA 1000VA

Χαρακτηριστικά

<strong>Phase</strong>

Single Phase

<strong>Form Factor</strong>

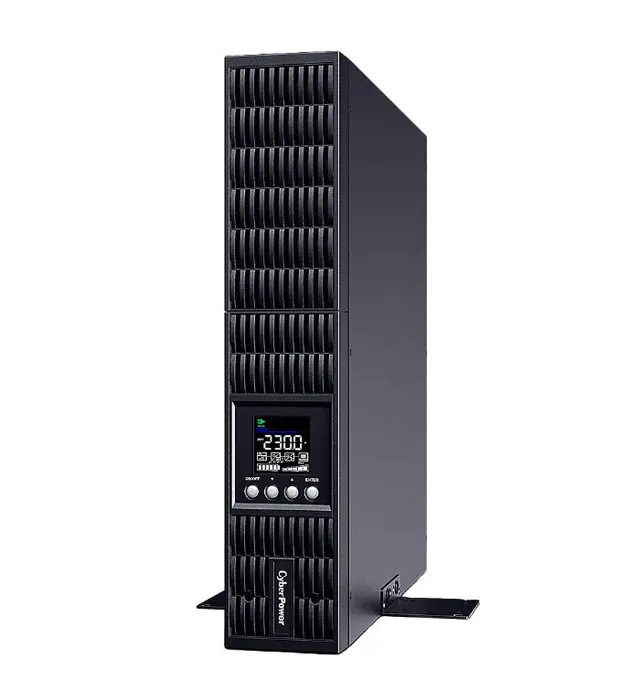

Rackmount, Tower

<strong>UPS Topology</strong>

Online Double Conversion

<strong>Energy Saving Technology</strong>

ECO Mode Efficiency ＞ 95%

<strong>Generator Compatibility</strong>

Yes

<strong>Nominal Input Voltage ( Vac )</strong>

230 ± 10%

<strong>Input Voltage Range ( Vac )</strong>

160 ~ 300

<strong>Adjustable Voltage Range ( Vac )</strong>

0~30% Load for 80 ~ 300 Vac, 0~60% Load for 120 ~ 300 Vac, 0~80% Load for 140 ~ 300 Vac, 0~100% Load for 160 ~ 300 Vac

<strong>Input Frequency ( Hz )</strong>

50 ± 10, 60 ± 10

<strong>Input Frequency Detection</strong>

Auto-sensing

<strong>Rated Input Current ( A )</strong>

4.5

<strong>Input Power Factor</strong>

0.99

<strong>Input Connector Type</strong>

IEC C14

<strong>Detachable Power Cord Plug Type</strong>

Schuko x 1

<strong>Capacity (VA)</strong>

1000

<strong>Capacity (Watts)</strong>

900

<strong>On Battery Waveform</strong>

Pure Sine Wave

<strong>On Battery Voltage(s) ( Vac )</strong>

208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %,

<strong>Output Voltage Setting</strong>

Configurable

<strong>On Battery Frequency ( Hz )</strong>

50 ± 0.5%, 60 ± 0.5%

<strong>Output Frequency Setting</strong>

Configurable

<strong>Power Factor</strong>

0.9

<strong>ECO Mode Voltage Tolerance</strong>

± 15 %

<strong>Overload Protection</strong>

Internal Current Limiting, Circuit Breaker, Fuse

<strong>Overload Protection (Line Mode)</strong>

110~120% Load for 1 min, ＞120% Load Immediately

<strong>Overload Protection (Battery Mode)</strong>

110~120% Load for 10 sec, ＞120% Load Immediately

<strong>Overload Protection (Bypass Mode)</strong>

＞130% Load Immediately

<strong>Crest Factor</strong>

3 : 1

<strong>Harmonic Distortion (Linear Load)</strong>

THD＜3%

<strong>Harmonic Distortion (Non-linear Load)</strong>

THD＜5%

<strong>Internal Bypass</strong>

Automatic Bypass, Manual Bypass

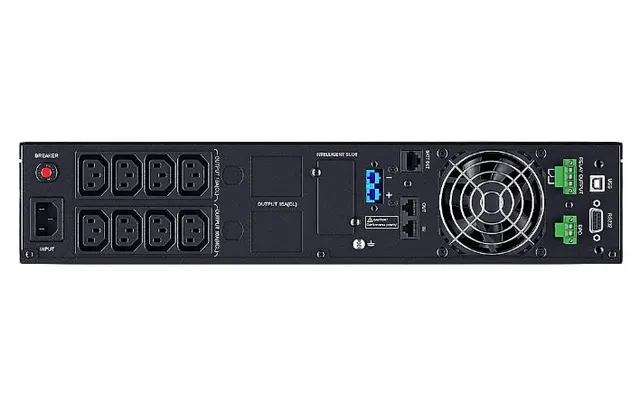

<strong>Outlet(s) - Total</strong>

8

<strong>Outlet Type</strong>

IEC C13 x 8

<strong>Outlet(s) - Battery & Surge Protected</strong>

8

<strong>Outlet(s) - Critical Load (CL)</strong>

4

<strong>Outlet(s) - Non-critical Load (NCL)</strong>

4

<strong>Runtime at Half Load ( min )</strong>

13.9

<strong>Runtime at Full Load ( min )</strong>

4.6

<strong>Typical Recharge Time ( Hours )</strong>

4

<strong>Maximum Charging Current ( A )</strong>

1.5

<strong>Start On Battery</strong>

Yes

<strong>Smart Battery Management (SBM)</strong>

Yes

<strong>User-replaceable</strong>

Yes - Qualified Personnel Only

<strong>Hot-swappable</strong>

Yes - Qualified Personnel Only

<strong>Battery Type</strong>

Sealed Lead-acid

<strong>Replacement Battery Pack (RBP)</strong>

RBP0156

<strong>Replacement Battery Pack (RBP) Quantity ( pcs )</strong>

1

<strong>Battery Quantity (Each RBP) ( pcs )</strong>

2

<strong>Battery Voltage (Each RBP) ( V )</strong>

24

<strong>Compatible Extended Battery Module (EBM)</strong>

BPSE24V40ART2U

<strong>Extended Battery Module Auto-detection</strong>

Yes

<strong>Surge Suppression ( Joules )</strong>

363

<strong>EMI/RFI Filtration</strong>

Yes

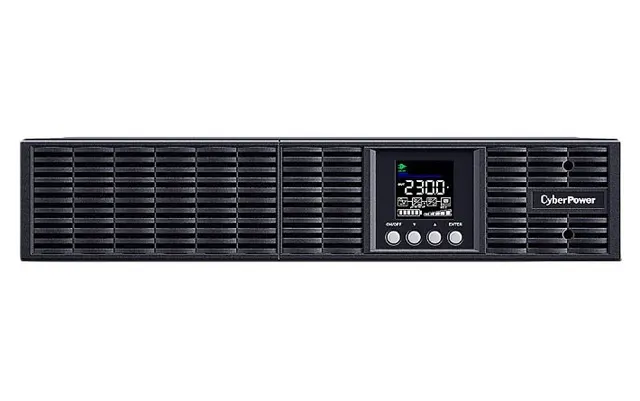

<strong>LCD Panel</strong>

Yes

<strong>LCD Types</strong>

Color LCD

<strong>LCD Orientation</strong>

Rotatable LCD – Manual

<strong>LCD Information Display</strong>

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

<strong>LCD Setting & Control</strong>

Mode Setting, Alarm Setting, Input & Output, Battery Setting

<strong>HID Compliant USB Port(s)</strong>

1

<strong>Dry Contact (with Relay)</strong>

Yes

<strong>Emergency Power Off (EPO) Port</strong>

Yes

<strong>Audible Alarms</strong>

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

<strong>Management Cable ( pcs )</strong>

Power Cord x2, USB Cable x1

<strong>Power Management Software</strong>

PowerPanel Business (Recommended)

<strong>Enclosure Construction</strong>

Metal

<strong>Color</strong>

Black

<strong>Rackmount Rail</strong>

Yes

<strong>Dimensions (WxHxD) (mm.)</strong>

438 x 88 x 430

<strong>Weight (kg.)</strong>

13.5

<strong>Operating Temperature (°C)</strong>

0 ~ 40

<strong>Operating Relative Humidity (Non-condensing) ( % )</strong>

5 ~ 95

<strong>Operating Elevation ( meters )</strong>

0-1,500 meters

<strong>Storage Temperature (°C)</strong>

-20 ~ 50

<strong>Storage Relative Humidity (Non-condensing) ( % )</strong>

10 ~ 90

<strong>Storage Elevation ( meters )</strong>

0-1,500 meters

<strong>Online Thermal Dissipation ( BTU/hr )</strong>

380

<strong>Variable Speed Fans</strong>

20 steps automatically

<strong>Certifications</strong>

CE, EAC, TISI

<strong>RoHS</strong>

Yes
