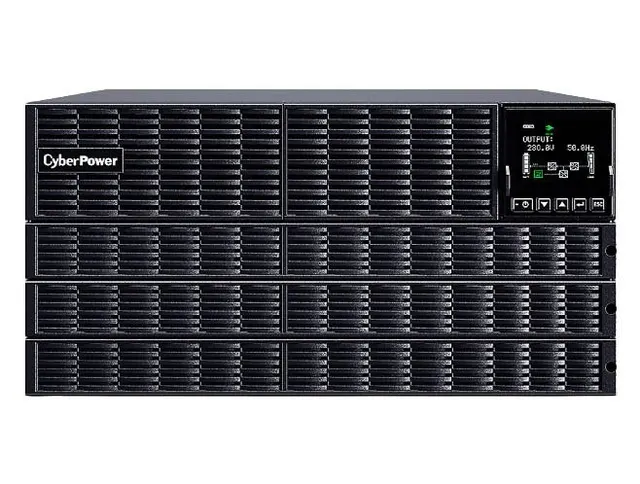

CyberPower ONL Rackmount UPS OLS10KERT5UM 10000VA

Χαρακτηριστικά

<strong>Phase</strong>

Single Phase

<strong>Form Factor</strong>

Rackmount, Tower

<strong>UPS Topology</strong>

Online Double Conversion

<strong>Energy Saving Technology</strong>

ECO Mode Efficiency ＞ 98%

<strong>Active PFC Compatibility</strong>

Yes

<strong>Generator Compatibility</strong>

Yes

<strong>Nominal Input Voltage ( Vac )</strong>

230 ± 10%

<strong>Input Voltage Range ( Vac )</strong>

110 ~ 300

<strong>Input Frequency ( Hz )</strong>

50 ± 10, 60 ± 10

<strong>Input Frequency Detection</strong>

Auto-sensing

<strong>Rated Input Current ( A )</strong>

45.5

<strong>Input Power Factor</strong>

0.99

<strong>Capacity (VA)</strong>

10000

<strong>Capacity (Watts)</strong>

10000

<strong>On Battery Waveform</strong>

Pure Sine Wave

<strong>On Battery Voltage(s) ( Vac )</strong>

208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %

<strong>Output Voltage Setting</strong>

Configurable

<strong>On Battery Frequency ( Hz )</strong>

50 ± 0.5%, 60 ± 0.5%

<strong>Output Frequency Setting</strong>

Configurable

<strong>Power Factor</strong>

1

<strong>ECO Mode Voltage Tolerance</strong>

± 10 %

<strong>Overload Protection</strong>

Internal Current Limiting, Circuit Breaker, Fuse

<strong>Crest Factor</strong>

3 : 1

<strong>Harmonic Distortion (Linear Load)</strong>

THD＜1.5%

<strong>Harmonic Distortion (Non-linear Load)</strong>

THD＜3%

<strong>Internal Bypass</strong>

Automatic Bypass, Manual Bypass

<strong>Maintenance Bypass</strong>

Yes

<strong>Outlet(s) - Total</strong>

9

<strong>Outlet Type</strong>

Hardwire Terminal Block x 1, IEC C13 x 4, IEC C19 x 4

<strong>Runtime at Half Load ( min )</strong>

11.2

<strong>Runtime at Full Load ( min )</strong>

2.9

<strong>Typical Recharge Time ( Hours )</strong>

4

<strong>Maximum Charging Current ( A )</strong>

4

<strong>Start On Battery</strong>

Yes

<strong>Smart Battery Management (SBM)</strong>

Yes

<strong>User-replaceable</strong>

Yes - Qualified Personnel Only

<strong>Battery Type</strong>

Sealed Lead-acid

<strong>Replacement Battery Pack (RBP)</strong>

RBP0191

<strong>Replacement Battery Pack (RBP) Quantity ( pcs )</strong>

2

<strong>Battery Quantity (Each RBP) ( pcs )</strong>

10

<strong>Compatible Extended Battery Module (EBM)</strong>

BPS240V9ART3U

<strong>Extended Battery Module Auto-detection</strong>

Yes

<strong>Surge Suppression ( Joules )</strong>

1335

<strong>LCD Panel</strong>

Yes

<strong>LCD Types</strong>

Color LCD

<strong>LCD Orientation</strong>

Rotatable LCD – Manual

<strong>Tiltable LCD Panel</strong>

15°

<strong>LCD Information Display</strong>

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

<strong>LCD Setting & Control</strong>

Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting

<strong>LED Indicators</strong>

Power On

<strong>HID Compliant USB Port(s)</strong>

1

<strong>Serial Port</strong>

RS232

<strong>Dry Contact (with Relay)</strong>

Yes

<strong>Emergency Power Off (EPO) Port</strong>

Yes

<strong>Audible Alarms</strong>

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

<strong>Management Cable ( pcs )</strong>

Power Cord x4, USB Cable x1

<strong>Power Management Software</strong>

PowerPanel Business (Recommended)

<strong>SNMP/HTTP Remote Monitoring</strong>

Yes - RMCARD205 included

<strong>Enclosure Construction</strong>

Metal

<strong>Color</strong>

Black

<strong>Rackmount Rail</strong>

Yes

<strong>Dimensions (WxHxD) (mm.)</strong>

433 x 213.5 x 661

<strong>Weight (kg.)</strong>

80.4

<strong>Operating Temperature (°C)</strong>

0 ~ 40

<strong>Operating Relative Humidity (Non-condensing) ( % )</strong>

0 ~ 95

<strong>Operating Elevation ( meters )</strong>

≤1000, Load Derated 1% per 100m from 1000m and 2000m

<strong>Storage Temperature (°C)</strong>

-15 ~ 45

<strong>Storage Relative Humidity (Non-condensing) ( % )</strong>

0 ~ 95

<strong>Storage Elevation ( meters )</strong>

0-15,000 meters

<strong>Online Thermal Dissipation ( BTU/hr )</strong>

2047

<strong>Certifications</strong>

CE

<strong>Rack/Tower Convertible Configurations</strong>

Yes
