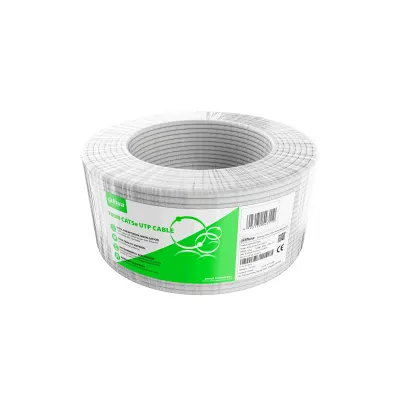

Dahua CAT5e Cable CCA 100m PFM922I-5EUN-C-100-white

Χαρακτηριστικά

Material

FR-PVC (ROHS compliant)

Diameter

5.1 mm ± 0.3 mm

Wire Gauge

24AWG

Min. Average Thickness

0.5 mm

Color

Orange

Specification

500D

Max. DC Resistance of a Single Conductor

14.5Ω/100 m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Max. Mutual Capacitance

5.6nF/100 m

Dielectric Strength

No breakdown with 1kV DC for 1 min

Tensile Strength

Sheath≥13.5 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥150%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥8%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Vertical Fire Propagation Test

Comply with IEC 60332-2-2

Length

100 m ± 1 m

Packaging Dimensions

537 mm × 242 mm × 253 mm (L × W × H)

Net Weight

2 kg ± 0.4 kg

Gross weight

10.8 kg ± 0.8 kg

Inner Carton Dimensions

220 mm × 220 mm × 105 mm (L × W × H)

Packaging Method

100 m per carton, 5 cartons per transport package

Executive Standard

Q/DXJ 067-2019
