Dahua

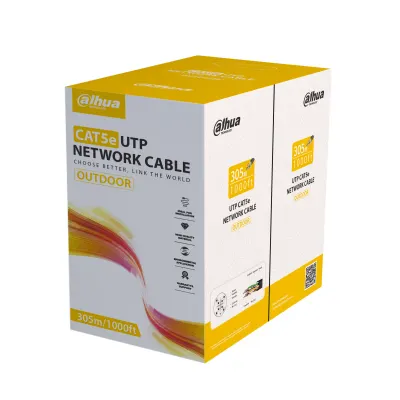

Dahua CAT5e OFC Cable 305m 0.50mm Outdoor Black PFM920-5EU
Κωδικός παραγγελίας: 28458EAN: 6939554987205
- Material:MDPE
- Diameter:5.2 mm ± 0.4 mm (0.20" ± 0.0157")
- Wire Gauge:24 AWG
- Min. Average Thickness:0.7 mm (0.0276")
- Color:Black
- Όλα τα χαρακτηριστικά
199,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- 305 m /carton outdoor U/UTP CAT5E, power over Ethernet, compatible with one cable
- High-purity oxygen-free copper conductor material
- Customized MDPE outer sheath,certain degree of waterproof Environmentally friendly and all materials used are RoHS compliant
- 10-year manufacturer warranty
Χαρακτηριστικά
- Material
- MDPE
- Diameter
- 5.2 mm ± 0.4 mm (0.20" ± 0.0157")
- Wire Gauge
- 24 AWG
- Min. Average Thickness
- 0.7 mm (0.0276")
- Color
- Black
- Specification
- W: 20 mm ± 2 mm × T: 0.026 mm ± 0.02 mm (W: 0.79" ± 0.08" × T: 0.0010" ± 0.0008")
- Max. DC Resistance of a Single Conductor
- 9.5 Ω / 100 m (328.08 ft)
- Min. Insulation Resistance
- 5000 MΩ·km
- Max. DC Resistance Unbalance
- 2% (pair intra), 4% (pairs inter)
- Dielectric Strength
- No breakdown with 1kV DC for 1 min
- Characteristic Impedance
- 100 Ω ± 15 Ω
- Near-end Crosstalk
- ≥35.3 dB / 100 m @ 100 MHz
- Max. Attenuation
- 22 dB / 100 m @ 100 MHz
- Return Loss
- ≥20.1 dB / 100 m @ 100 MHz
- Tensile Strength
- Sheath ≥13.5 MPa, insulation ≥16 MPa
- Elongation at Break
- Sheath ≥150%, insulation ≥300%
- Installation Bending Radius
- >15 times of outer cable diameter
- Conductor Elongation at Break
- ≥15%
- Shrinkage of Insulation
- ≤5%
- Color Migration Resistance of Insulation
- No migration
- Sheath Tensile Strength and Elongation at Break after Aging
- ≥9.6 MPa, rate of change ≤20%
- Low Temperature Bending Test
- No cracking after the test
- Heat Shock Test
- No cracking after the test
- Operation Temperature
- –20 °C to +60 °C (–4 °F to +140 °F)
- Installation Temperature
- 0 °C to +50 °C (32 °F to 122 °F)
- Storage Temperature and Humidity
- –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)
- Cable Length
- 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)
- Packaging Method
- 305 m (1,000 ft) a carton, one carton with 2 inner cartons
- Packaging Dimensions
- 406 mm × 404 mm × 216 mm (15.98" × 15.91" × 8.50") (L × W × H)
- Transport Package Dimensions
- 455 mm × 435 mm × 436 mm (17.91" × 17.13" × 17.17") (L × W × H)
- Net Weight
- 8.5 kg ± 0.6 kg (18.74 lb ± 1.32 lb)
- Gross weight
- 9.3 kg ± 0.6 kg (20.50 lb ± 1.32 lb)
- Executive Standards
- YD/T 3296.2-2018, ANSI/TIA 568.2-D
