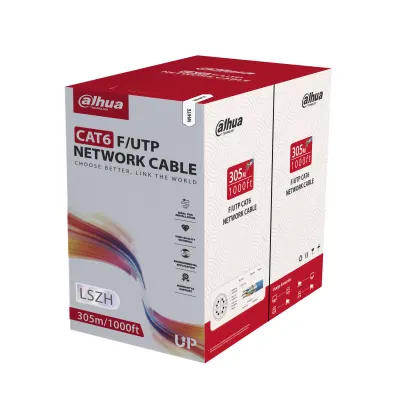

Dahua CAT6 CPR D, OFC, LSZH, FTP Cable 305m 0.53mm White PFM923I-6FN-CD

Χαρακτηριστικά

Material

LSZH

Diameter

6.4 mm ± 0.3 mm (0.252" ± 0.012")

Wire Gauge

24 AWG

Min. Average Thickness

0.5 mm (0.02")

Color

White

Specification

0.04 mm × 22 mm (0.002" × 0.867")

Max. DC Resistance of a Single Conductor

8.7 Ω / 100 m

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥39.30 dB / 100 m @ 250 MHz

Max. Attenuation

34.8 dB / 100 m @ 250 MHz

Return Loss

≥17.3 dB / 100 m @ 250 MHz

Tensile Strength

Sheath ≥10 MPa, insulation ≥16 MPa

Elongation at Break

Sheath ≥125%, insulation ≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8 MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Vertical Fire Propagation Test

EN 50399; EN 60332-1-2; EN 61034-2; EN 60754-2

Cable Length

305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)

Packaging Method

305 m / box

Packaging Dimensions

436 mm × 436 mm × 222 mm (17.17" × 17.17" × 8.74") (L × W × H)

Transport Package Dimensions

470 mm × 470 mm × 470 mm (18.5" × 18.5" × 18.5") (L × W × H)

Net Weight

12.00 kg ± 0.50 kg (26.46 lb ± 1.10 lb)

Gross weight

13.00 kg ± 0.50 kg (28.66 lb ± 1.10 lb)

Executive Standards

Q／DXJ 067-2024, EN50575

Certifications

CPR Dca

Flame-retardant Standard

EN50575
