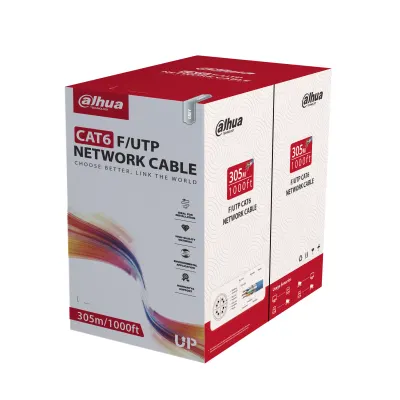

Dahua CAT6 CPR OFC FTP Cable 305m 0.57mm Gray PFM920I-6F-C

Χαρακτηριστικά

Material

PVC

Diameter

7.3 mm ± 0.4 mm (0.2874" ± 0.0157")

Wire Gauge

23 AWG

Min. Average Thickness

0.55 mm (0.0216")

Color

Gray

Specification

0.06 mm × 25 mm (0.002" × 0.98")

Thickness

0.025 mm × 25 mm (0.001" × 0.98")

Max. DC Resistance of a Single Conductor

7.35 Ω / 100 m (328.08 ft)

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥33.10 dB / 100 m @ 250 MHz

Max. Attenuation

32.8 dB / 100 m @ 250 MHz

Return Loss

≥17.3 dB / 100 m @ 250 MHz

Tensile Strength

Sheath ≥13.5 MPa, insulation ≥16 MPa

Elongation at Break

Sheath ≥150%, insulation ≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥12.5 MPa, ≥125%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Vertical Flame Test

Complies with IEC 60332-1-2

Cable Length

305.0 m ± 2 m (1000.66 ft ± 6.56 ft)

Packaging Method

305 m (1000 ft) a carton, one carton with 2 inner cartons

Packaging Dimensions

414 mm × 321 mm × 425 mm (16.3" × 12.64" × 16.73") (L × W × H)

Net Weight

19.3 kg ± 0.6 kg (42.55 lb ± 1.32 lb)

Gross weight

20.3 kg ± 0.5 kg (44.75 lb ± 1.32 lb)

Executive Standards

ISO/IEC 11801, IEC 61156

Certifications

CPR Eca

Flame-retardant Standard

EN50575
