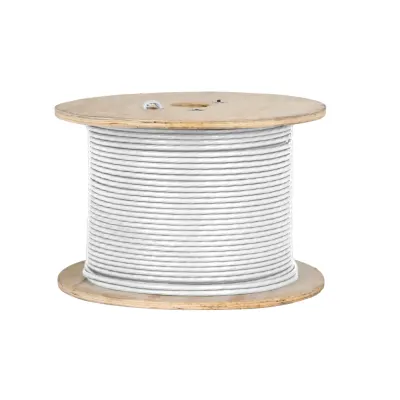

Dahua CAT6A CPR D, OFC, LSZH Cable 305m 0.57mm White PFM923I-6AU-CD

Χαρακτηριστικά

Material

LSZH

Diameter

6.6 mm ± 0.3 mm (0.2598" ± 0.0118")

Wire Gauge

23 AWG

Min. Average Thickness

0.5 mm (0.02")

Color

White

Specification

Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")

Thickness

0.07 mm × 24 mm (0.0028" × 0.9449")

Max. DC Resistance of a Single Conductor

7.35 Ω / 100 m

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥33.8 dB / 100 m @ 500 MHz

Max. Attenuation

≥45.3 dB / 100 m @ 500 MHz

Return Loss

≥15.2 dB / 100 m @ 500 MHz

Tensile Strength

Sheath ≥10 MPa, Insulation ≥10 MPa

Elongation at Break

Sheath ≥125%, Insulation ≥200%

Installation Bending Radius

>15 times of outer cable diameter

Conductor Elongation at Break

≥15%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8 MPa, ≥125%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Vertical Flame Test

EN 50399; EN 60332-1-2; EN 61034-2; EN 60754-2

Cable Length

305.0 m ± 2 m (1000.66 ft ± 6.56 ft)

Packaging Method

305.0 m (1000.66 ft) a roll, plywood wooden shaft

Packaging Dimensions

300 mm × 300 mm × 320 mm (11.81" × 11.81" × 12.60") (L × W × H)

Net Weight

12 kg ± 0.50 kg (26.46 lb ± 1.10 lb)

Gross weight

13.50 kg ± 0.50 kg (29.76 lb ± 1.10 lb)

Executive Standards

ANSI/TIA-568.2-D

Certifications

CPR Dca

Flame-retardant Standard

EN50575
