Dahua

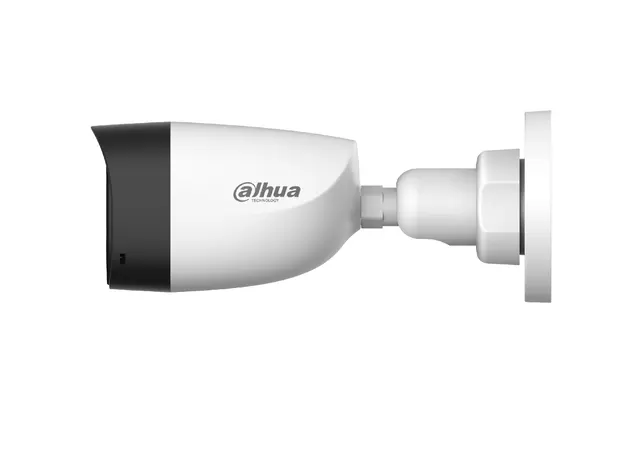

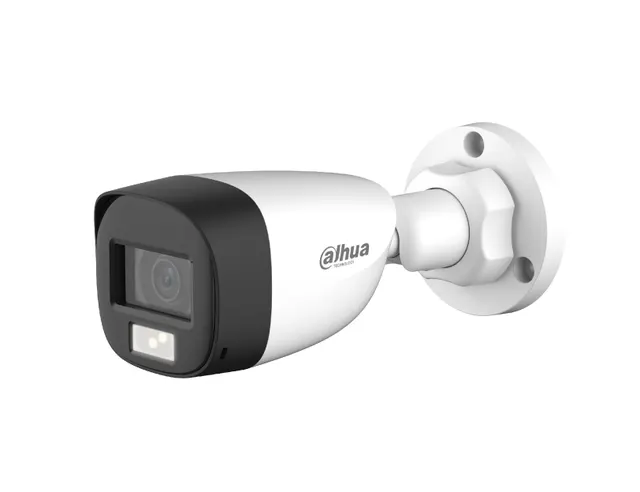

Dahua HDCVI 5.0MP Bullet 3.6mm HFW1500CL-IL-A-0360B-S2
Κωδικός παραγγελίας: 24950
- Image Sensor:5 MP CMOS
- Max. Resolution:2880 (H) × 1620 (V)
- Scanning System:Progressive
- Electronic Shutter Speed:PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination:0.05 [email protected] (Color, 30 IRE) / 0.005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- Όλα τα χαρακτηριστικά
64,00 €με ΦΠΑ
Μη διαθέσιμο
Περιγραφή
* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
- Max 25 fps@5MP (16:9 video output)
- Smart Dual Light
- 20 m illumination distance
- Super Adapt
- Built-in MIC
- 3.6 mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Χαρακτηριστικά
- Image Sensor
- 5 MP CMOS
- Max. Resolution
- 2880 (H) × 1620 (V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination
- 0.05 [email protected] (Color, 30 IRE) / 0.005 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >65 dB
- Illumination Distance
- IR: 20 m / Warm light: 20 m
- Illuminator On/Off Control
- Auto/Manual
- Illuminator Number
- 2 (Warm light);2 (IR light)
- Lens Type
- Fixed-focal
- Lens Mount
- M12
- Focal Length
- 3.6 mm
- Max. Aperture
- F1.6
- Field of View
- 3.6 mm: H: 92°; V: 48°; D: 109°
- Iris Control
- Fixed
- Close Focus Distance
- 3.6 mm: 1.3 m
- Video Frame Rate
- CVI : PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps / AHD : PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps / CVBS: PAL: 960H;
- NTSC
- 960H
- Resolution
- 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night
- Auto(ICR)/Color/B/W
- BLC
- BLC; HLC; DWDR;
- WDR
- DWDR
- White Balance
- Auto; Area white balance
- Gain Control
- Auto/Manual
- Noise Reduction
- 2D NR
- Illumination Mode
- Smart IR&WL; WL Mode; IR Mode
- Mirror
- Yes
- Privacy Masking
- Off/On (8 areas, rectangle)
- Certifications
- CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035; / FCC: 47 CFR FCC Part 15, Subpart B
- Video Output
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input
- 1-channel built-in MIC
- Power Supply
- 12 VDC ± 30%
- Power consumption
- Max 4.5 W (12 VDC, WLED on)
- Operating Temperature
- –40 °C to +60 °C
- Operating Humidity
- <95% (RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C
- Storage Humidity
- <95% (RH), non-condensing
- Protection
- IP67
- Casing Material
- Plastic
- Product Dimensions
- 163.4 mm × 69.7 mm × 70 mm
- Net Weight
- 0.19 kg
- Gross weight
- 0.27 kg
- Installation
- Wall mount; ceiling mount; vertical pole mount
