Dahua IP 4.0MP 4G 3.6mm Solar Power Network PT Camera HFW244IDG-4G-SP-B-0360B

Κωδικός παραγγελίας: 27618EAN: 6939554940521

Image Sensor:1/3" CMOS
Max. Resolution:2560 (H) × 1440 (V)
ROM:128 MB
RAM:128 MB
Scanning System:Progressive
Όλα τα χαρακτηριστικά

450,00 €με ΦΠΑ

Μη διαθέσιμο

Περιγραφή

4-MP 1/3" CMOS image sensor, low luminance, and high definition image
Outputs max. 4 MP (2560 × 1440) @15 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 20 m
Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
Built-in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
In AOV mode, the camera wakes up when a person or vehicle appears, providing 24/7 surveillance while maintaining ultra-low power consumption
Supports max. 512 G Micro SD card; built-in Mic and speaker; supports two-way talk

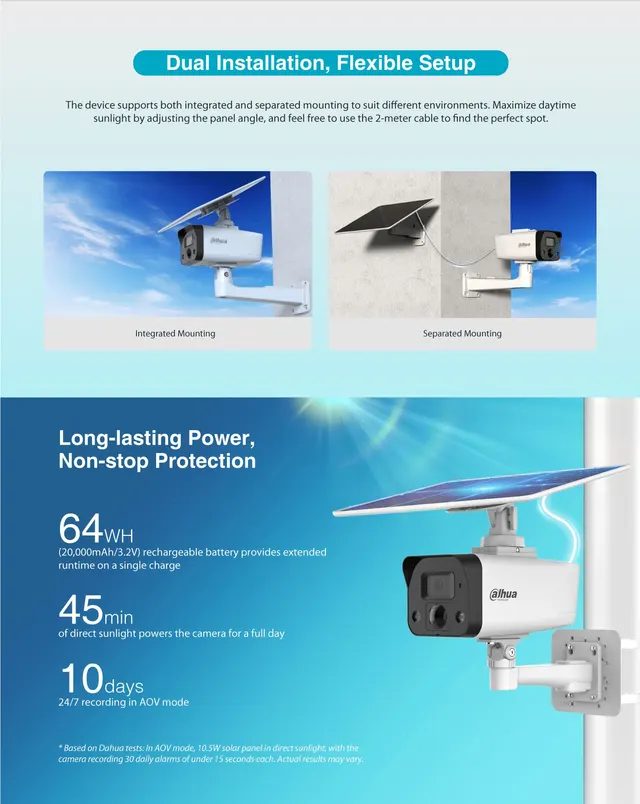

The solar panel offers both integrated and detachable designs, and supports multi-dimensional angle adjustment
It features a built-in 64Wh high-capacity lithium iron phosphate battery with stable performance
It supports both 12 VDC and Type-C power supply options, used respectively for connecting an external solar panel and for temporary charging with a power bank.
IP67 protection
SMD

Χαρακτηριστικά

Image Sensor: 1/3" CMOS
Max. Resolution: 2560 (H) × 1440 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
S/N Ratio: >40 dB
Illumination Distance: 3.6 mm: Up to 30 m (IR) / Up to 20 m (Warm light)
Illuminator On/Off Control: Auto;Manual
Illuminator Number: 1 (IR LED); 1 (Warm light)
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 3.6 mm
Max. Aperture: F1.6
Field of View: 3.6 mm: H: 78.4°; V: 42.4°; D: 92.4°
Iris Control: Fixed
Close Focus Distance: 3.6 mm: 1.5 m
Intelligence Notes: SMD
Video Compression: H.265
Video Frame Rate: Main stream: 2560 × 1440@(1–15 fpss / sub stream: 640 × 360@(1–15 fps)
Streaming Capability: 2 streams
Resolution: 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Bit Rate: H.265: 32 kbps–4096 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: DWDR
White Balance: Auto
Gain Control: Auto
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Smart Dual Light: Yes
Privacy Masking: 4 areas
Audio Compression: G.711a
Alarm Event: SD card error; SD card full; motion detection; PIR alarm; low battery alarm
Network Port: RJ-45 (10/100 Base-T)
Carrier Network System: FDD-LTE: B1/B3/B5/B7/B8/B20/B28;
Applicable regions: Europe, Middle East, Africa
Power class 3: 23dBm ±2.7dB
SDK and API: Yes
Interoperability: P2P
Storage: Micro SD card (support max. 512 GB)
Management Software: DMSS; DSS Pro
Mobile Client: iOS;Android
CE-LVD: EN62368-1
CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU
CE-RED: Radio Equipment Directve 2014/53/EU
USB: 1 Type-C Port
Power Supply: 12 VDC
Power consumption: Ultra power saving mode: 0.036 W;
Power saving mode: 0.047 W;
AOV mode: 0.26 W;
Performance mode: 1.33 W
Operating Temperature: –40 °C to +60 °C
Operating Humidity: ≤95% (RH), non-condensing
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity: ≤95% (RH), non-condensing
Protection: IP67
Casing Material: Plastic
Product Dimensions: 285 mm × 235 mm × 2.5 mm (L × W × H)
Net Weight: 550 g
Gross weight: 2869 g
Battery Type: Lithium iron phosphate
Battery Capacity: 64Wh
Battery Voltage: 6.4 V
Ultra power saving mode (no-trigger recording): 76 days
Power saving mode (30 daily alarms of under 15s each): 56days
AOV mode (30 daily alarms of under 15s each): 10 days
Performance mode (continuous recording): 2 days
Battery Life: More than 1,000 cycles
Max. Power: 10.5 W
Cell Type: Monocrystalline silicon
