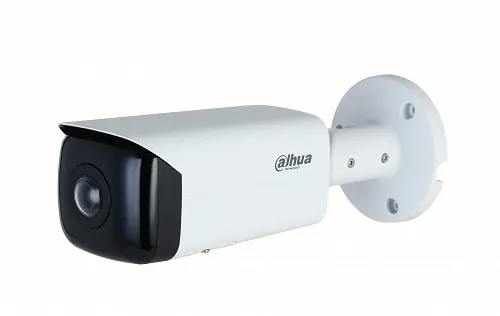

Dahua IP Lite AI 4.0MP 2.1mm Bullet HFW3441T-AS-P-0210B

Dahua IP Lite AI 4.0MP 2.1mm Bullet HFW3441T-AS-P-0210B

• 4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image
• Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, and the max. illumination distance is 15 m
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
• 12 VDC/PoE power supply
• IP67, IK10 protection
• EPTZ: Enlarge and track the targets of intelligent alarms
• SMD 3.0

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• ROM : 128 MB
• RAM : 512 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : 20 m (IR LED)
• Illuminator On/Off Control : Auto
• Illuminator Number : 2 (IR LED)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.1 mm
• Max. Aperture : F2.0
• Field of View : LDC is disabled: Horizontal : 180°; Vertical: 78°; Diagonal: 180°
• LDC is enabled (by default) : Horizontal: 170°; Vertical: 75°; Diagonal: 175°
• Close Focus Distance : 0.6 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• SMD 3.0 : Less false alarm, longer detection distance
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• AI Coding : AI H.265; AI H.264
• Video Frame Rate : Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @(1–25/30 fps ) / sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
• third stream:1920 × 1080 @ (1–25/30 fps)
• Stream Capability : 3 streams
• Resolution : 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080);1.3M (1280 × 960); 720p(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 3 kbps–8192 kbps; / H.265: 3 kbps–8192 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120dB
• Scene Self-adaptation (SSA) : Yes
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; Manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Defog : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Cyber Security : Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS
• Browser : IE / Chrome / Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : iOS; Android

Certifications

• CE-LVD:EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: 5 mA 3–5V DC
• Alarm Output : 1 channel out: 1,000 mA 30V DC/500mA 50V DC

Power

• Power Supply : 12 VDC/PoE
• Power Consumption : Basic: 3.2W (12 V DC); 3.9 W (PoE) / Max. (H.265+main stream/IR intensity+IR on): 6.4 W (12V DC); 7.7 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Protection : IP67,

Structure

Casing : Metal

• Product Dimensions : 249.3 mm × 90.7 mm × 90.4 mm
• Net Weight : 820 g
• Gross Weight : 1090 g
