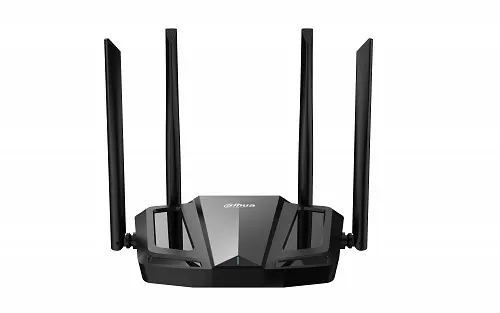

Dahua WR AC1200 Wireless Dual Band Gigabit Router AC12

Dahua WR AC1200 Wireless Dual Band Gigabit Router AC12

• 1.2 Gbps Wireless Speed(300 [email protected] GHz, 867 Mbps@5 GHz)
• Backward compatible (IEEE 802.11 b/g/n/ac standard)
• Beamforming for better Coverage
• Bi-directional MU-MIMO
• WiFi protected Access(WPA/WPA2)
• Guest Wi-Fi
• Parental Control

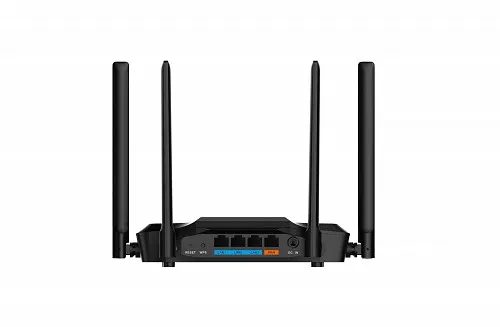

• • External Port : 1×10/100/1000 Mbps(WAN) / 3×10/100/1000 Mbps(LAN)
  • Power Consumption : <12 W
  • Memory : 64 MB RAM
  • Indicator Light : PWR
  • Wireless Standard : 2.4 GHz: 802.11 b/g/n / 5 GHz: 802.11 a/b/g/n/ac

  Performance

  • Operating Frequency : 2.412 GHz–2.484 GHz / 5.150 GHz–5.850 GHz
  • Wireless Transmission Rate : 2.4 GHz: 300 Mbps / 5 GHz: 867 Mbps
  • Channel Width : 20/40/80 MHz
  • Max. Output Power : 20 dBm ± 2 dBm
  • Antenna Gain : 2.4 GHz: 5 dBi (±0.5) / 5 GHz: 5dBi (±0.5)
  • Receiver Sensitivity 5GHz: 11ac VHT80_MCS0: -89dbm / 11ac VHT80_MCS9:-62dbm  / 2.4GHz : 11n HT20_MCS0: -95dbm / 11n HT20_MCS7: -75dbm / 11n HT40_MCS0: -92dbm / 11n HT40_MCS7: -72dbm
  • Channel : 2.4 GHz: 1-13 / 5GHz:36/40/44/48,52/56/60/64,149/151/153/157/161/165
  • Connected Wireless Terminals : 2.4 GHz: 32  / 5 GHz: 32

  Function

  • Encryption Mode : WPA / WPA2
  • Firmware Update : Web/WiLynk App update
  • OFDMA : Yes
  • MU-MIMO : 2x2
  • DHCP : Yes
  • NAT : Mapping based on port
  • VPN : L2TP / PPTP
  • QoS : Yes
  • DDNS : Yes
  • Parental Controls : Yes
  • Equipment Management : Yes

  General

  • Power Supply : 12 VDC,1A
  • Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature : 20 °C to +70 °C (–4 °F to 158 °F)
  • Operating Humidity : 0%–90% (RH), non-condensing
  • Net Weight : 0.31 kg
  • Packaging Dimensions : 300 mm × 260 mm × 70 mm (L × W × H)
  • Product Dimensions : 222 mm × 147.4 mm × 188.4 mm (L × W × H)
  • Statics Protection : Air discharge: 8 kV / Contact discharge: 6 kV
  • Lighting Protection : Common mode: 2 kV / Differential mode: 0.5 kV
  • Installation : Desktop mount; wall mount

  Packing List

  • 1 × Device
  • 1 × Power adapter
  • 1 × Ethernet cable
  • 1 × Quick Start Guide
  • 1 × Legal and Regulatory Information
