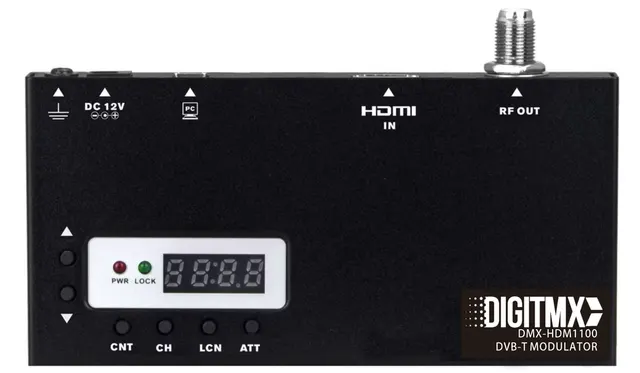

DigitMX DMX-HDM1110 DVB-T Compact Full HD Modulator
Κωδικός παραγγελίας: 30421
- Modulation standard:DVB-T COFDM
- Picture / video resolution:1280 x 720p, 1920 x 1080p
- Video bandwidth:6/7/8MHz
- Video Compression:H.264, Bitrate 5-15 Mb/s
- Transmission frequency DVB-T:174-230 MHz + 470-862 MHz / > 85 dBμV
- Όλα τα χαρακτηριστικά
119,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
The DigitMX HDM-1110 modulator is a professional device designed to convert HD video signals to RF output according to the DVB-T standard. It incorporates MPEG-4 AVC / H.264 encoding, ensuring optimal image quality and compatibility with global digital terrestrial television
Designed to meet the needs of modern environments
- Home entertainment
- Video surveillance systems
- Digital signage in hotels
- Shops and commercial spaces
- Community TV installations
High-Performance Encoding and Modulation
- Thanks to its MPEG-4 AVC / H.264 encoding, the DigitMX HDM-1110 modulator enables efficient compression while maintaining excellent image quality. DVB-T modulation ensures stable broadcasting that complies with DTT standards
Why choose the DigitMX HDM-1110
- Reliable, compact, and easy to integrate, this modulator is an ideal solution for distributing HD content over DVB-T networks. It meets both professional needs and advanced home installations
Χαρακτηριστικά
- Modulation standard
- DVB-T COFDM
- Picture / video resolution
- 1280 x 720p, 1920 x 1080p
- Video bandwidth
- 6/7/8MHz
- Video Compression
- H.264, Bitrate 5-15 Mb/s
- Transmission frequency DVB-T
- 174-230 MHz + 470-862 MHz / > 85 dBμV
- Constellation
- 64QAM
- FEC
- 2/3
- MER rate
- > 40 dB @ DVB-C
- Connection Ports
- 1x Antena output, 1 x HDMI input, 1 x PC input
- Power
- 12 V DC
- Dimensions (mm)
- 147 × 75 × 18
- Weight
- 105g
