EcoFlow STREAM Smart Meter Real Time Energy Tracking & Allocation

Χαρακτηριστικά

Size (HxWxD)

94x19x69 ±0.5 mm /

Weight

62 ±1 g

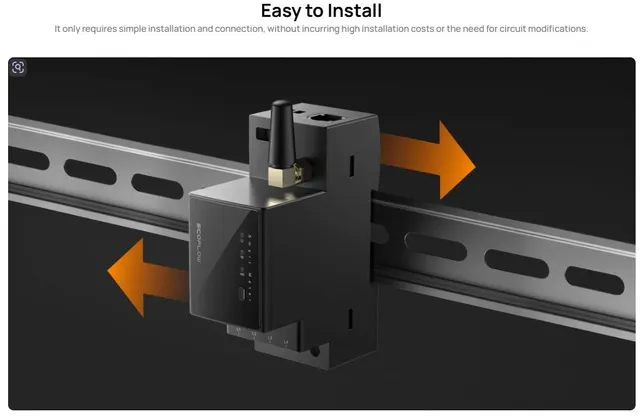

Mounting

DIN rail

Screw terminals max torque

0.4 Nm

Conductor cross section

0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)

Conductor stripped length

6 to 7 mm

Shell material

Plastic

Ambient temperature

-20 °C to 40 °C

Humidity

30 % to 70 % RH

Max. altitude

2000 m

Power supply voltage AC

100 - 260 V, 50/60 Hz

Power supply voltage DC

N/A

Power consumption

< 3 W

External protection

Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Internal-temperature sensor

Yes

Voltmeters (RMS for each phase)

100 - 260 V

Voltmeters accuracy

±1 %

Ammeters (RMS via CT for each phase and the Neutral)

0-120 A

Compatible CT

CT 120A

Ammeters accuracy

±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)

Power and energy meters

Active and apparent power / Active and apparent energy / Power factor / Fundamental active and fundamental reactive energy

Channel-to-channel calibration minimum load

500 W per channel

No load threshold

30 VA per channel

Measurement data storage

At least 60 days of 1 min data resolution

Data export

CSV for PQ recorded values / JSON format export through RPC

RF band

2400 - 2495 MHz

Max. RF power

<20 dBm

Wi-Fi protocol

802.11 b/g/n

Wi-Fi Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)

Bluetooth Protocol

4.2

Bluetooth Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)

CPU

ESP32-D0WDQ6

Flash

16 MB

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

CoAP

No
