EMP Multiswich ECO Active 17/8 MS17/8EIA-6

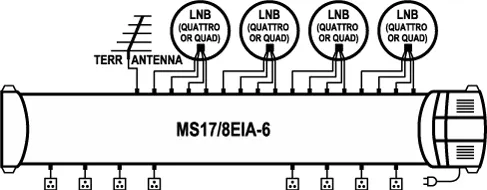

• 17in/8out standalone multiswitch for distribution of 16 SAT IF signals including active terrestrial for up to 8 users

Frequency range:

• LNB inputs: 950-2150 MHz
• Terr. input: 40-862 MHz
• Outputs: 40-2150 MHz

Control:

• DiSEqC 1.0 (2.0) commands

Insertion loss:

• Sat: 0 dB avg
• Terr: 7 dB avg

Sat. inputs isolation:

• Between V/H polarisations: 20 dB min
• Between low/high Bands: 20 dB min
• Between sat. systems: 25 dB min

Maximum input level:

• Sat: 90 dBµV avg
• Terr: 90 dBµV avg

Maximum output level:

• Sat: 90 dBµV avg
• Terr: 83 dBµV avg

Power consumption:

• From each receiver: 75 mA (18 V)
• From internal power supply: 6.5 W + LNB

Dimensions (w,d,h):

• 47.0 x 15.2 x 8.7 cm

(power cord length 130 cm)

Temperature range:

• -25 ~ +60 °C
