HDL 8CH 16A High Power Switch Actuator
Κωδικός παραγγελίας: 22304EAN: 06972372985268
- 16A High Power Switch Actuators with Current Detection include 3 types:4, 8 and 12 channels of actuator.
- Maximum output current of each channel:16A
- Control functions:Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, Curtain control, etc.
- Logic function:AND, OR, XOR.
- Heating function:PWM(1bit/1byte) control output.
- Όλα τα χαρακτηριστικά
259,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

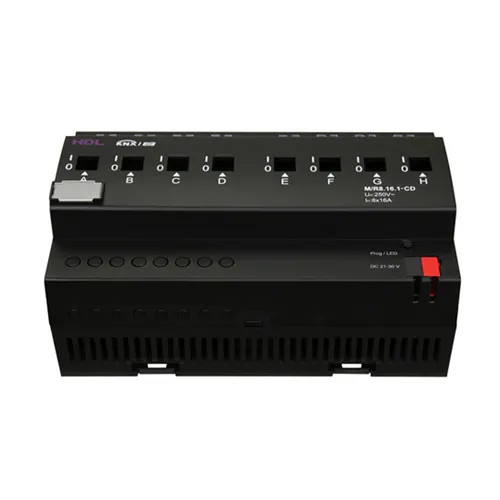

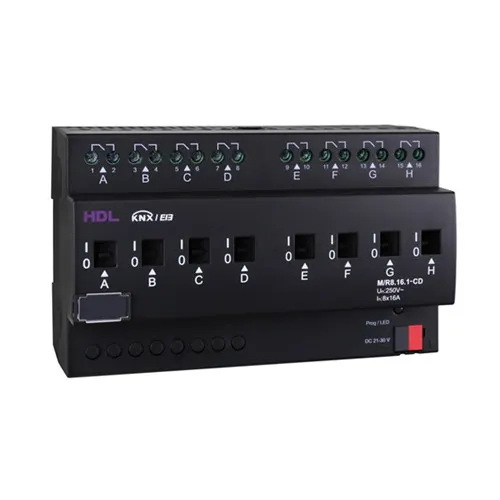

KNX 16A High Power Switch Actuator with Current Detection adopts 50A magnetic latching relay, which has three types(4CH, 8CH and 12CH) of output circuits, and each channel outputs 16A current. This series of High Power Actuators have the characteristics of long life, low power consumption and fast execution speed.
Χαρακτηριστικά
- 16A High Power Switch Actuators with Current Detection include 3 types
- 4, 8 and 12 channels of actuator.
- Maximum output current of each channel
- 16A
- Control functions
- Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, Curtain control, etc.
- Logic function
- AND, OR, XOR.
- Heating function
- PWM(1bit/1byte) control output.
- Current detection function
- Current report, Current surveillance, Current conformance detection, Current threshold comparison detection.
