HDL Panel SOURCE 10 Touch Screen Dark Purple
Κωδικός παραγγελίας: 29019
- Power consumption:≤15W
- Input Voltage:Zigbee interface: 100 ~ 240V AC, 50/60Hz; Buspro interface: 18 -
- 28V DC; KNX interface:21 - 30V DC
- KNX auxilary voltage:18 - 28V DC
- Output channel:Zigbee / Buspro / KNX interface：2CH，3A/CH; Resistive load:
- Όλα τα χαρακτηριστικά
699,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Supporting multiple Source intelligent central control at the same time; master-slave gateway function

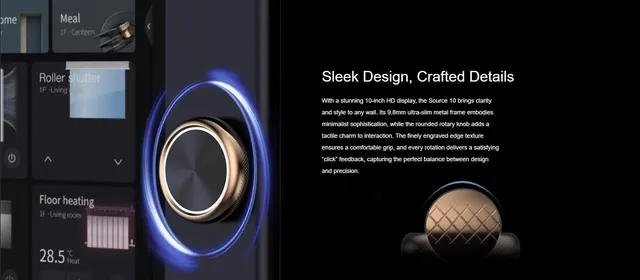

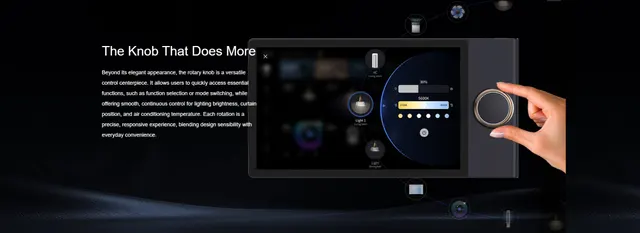

- Knob control with rotary use
- Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up
- Physical buttons for turning off or enabling the microphone and the display with one touch

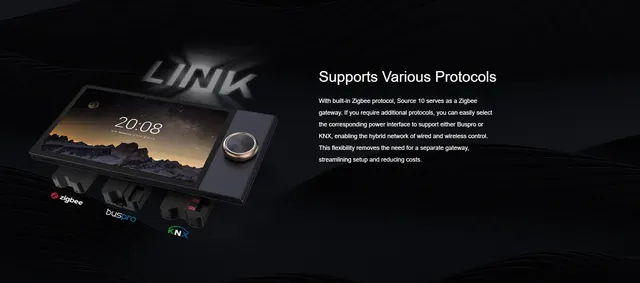

- This device must be used with the base, which can be optional with three power interfaces
Χαρακτηριστικά
- Power consumption
- ≤15W
- Input Voltage
- Zigbee interface: 100 ~ 240V AC, 50/60Hz; Buspro interface: 18 -
- 28V DC; KNX interface
- 21 - 30V DC
- KNX auxilary voltage
- 18 - 28V DC
- Output channel
- Zigbee / Buspro / KNX interface：2CH，3A/CH; Resistive load:
- ≤660W/CH; Capacitive load
- ≤200W/CH
- Communication protocol
- HDL LINK, WiFi 2.4G
- Main chip
- RK3566
- Storage capacity
- 2+16GB
- Operating frenquency
- 2.4GHz, 5GHz
- Indoor communication distance (barrierfree)
- ≤50m
- Operating System
- Android 11
- Ethernet Interface
- RJ45
- Touch Screen
- 10-inch capacitive touchscreen, resolution: 1200*2000, with multitouch technology
- Knob
- 30 levels of feedback for rotating, clicking and long-pressing;
- Knob light
- RGB light beads
- Microphone
- 4 microphones
- Speaker
- 1W*2
- Proximity sensor
- A maximum sensing distance of 100cm, default: 50cm (can be
- Light sensor
- Automatically adjusts screen brightness according to light level
- Temperature & humidity sensor
- Monitor the temperature and humidity of the environment
- MIC button
- Enable/disable microphone
- Power button
- Short press to close the display, long press to restart the device
- Type-C interface
- For upgrading or temporarily powering panels
- Working Temperature
- -5℃ ~ 45℃
- Working relative humidity
- ≤90%RH, non-condensed
- Storage Temperature
- -20℃ ~ 60℃
- Storage relative humidity
- ≤93%RH
- Dimensions (W x H x D)
- 301.3*155.2*9.8mm（Without power interface, see Figure 4）
- Net weight Source 10
- (With bracket，without power interface：1000g)
- Installation
- Wall box （up to 2 power interfaces installed）
- IP degree (compliant with EN 60529)
- IP20
