Lanberg Fiber Adapter SC/APC SM Simplex 25pcs Pack

Lanberg Fiber Adapter SC/APC SM Simplex 25pcs Pack

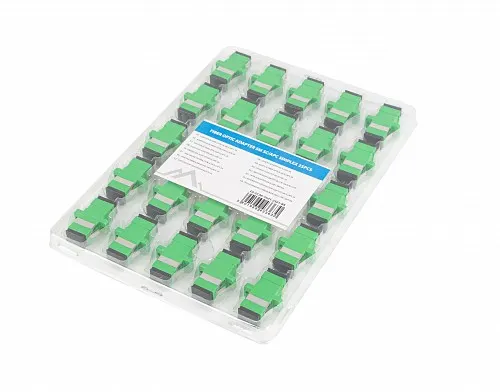

Package of 25 pcs, single-mode, simplex, SC/APC fiber optic adapters.

Fiber optic adapter is one of the components necessary for the construction of a fiber optic network. It was made with high precision and using the highest quality materials.

The adapter housing is created from very durable plastic, has a flange (flanges) with screw holes and a standard latch. The precision of the ceramic sleeve forming the connection for the ferrules ensures very low attenuation and repeatability of parameters.

The adapter finds its use in various configurations of connecting patchcords and in fiber optic switches and subscriber outlets in which it connects the pigtail to the patchcord.

• Connector type: SC
• Polishing standard: APC - ANGLED PHYSICAL CONTACT
• Type of optical fiber: single-mode (SM)
• Ferrule diameter: 2.5 mm
• Cable Construction: SIMPLEX
• Insertion loss: < 0,1 dB
• Return loss: > 55 dB
• Operating temperature: -40 – 85 °C
• Number of operating cycles: >1000
• Color: Green
• Cap: Black
