Lenkeng HDMI Modulator 4K30Hz Loop Out 4K60Hz LKV679P-DVBT
Κωδικός παραγγελίας: 30217EAN: 6955361278015
- <strong>HDMI Signal</strong>:HDMI 2.0,compatible HDCP 1.4/HDCP 2.2
- <strong>HDMI DDC Signal</strong>:5Vp-p（TTL）
- <strong>HDMI TMDS Signal</strong>:0.5~1.5Vp-p（TMDS）
- <strong>Input HDMI Resolution Supported</strong>:480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz RF OUTPUT: 720p@50/60Hz, 1080P@24/25/30Hz, 3840x2160@24/25/30Hz
- <strong>Video Encoding</strong>:H.264/H.265(4K)
- Όλα τα χαρακτηριστικά
239,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
The Lenkeng LKV679P-DVB-T represents the next generation of digital RF distribution, specifically engineered for high-end residential and commercial installations. This premium modulator allows resellers to offer a solution that bridges the gap between Ultra HD sources and standard DVB-T coaxial networks. Distinguishing itself with a high-performance 4K@60Hz HDMI loop-out, it ensures that the local display maintains full HDR/60Hz fidelity while simultaneously broadcasting a stabilized 4K@30Hz signal to an unlimited number of remote televisions. It is the definitive choice for bars, luxury homes, and retail environments requiring future-proof video distribution over existing cabling.
- Advanced 4K Distribution: Encodes 4K@30Hz HDMI signals into DVB-T RF for seamless transmission over standard coax.

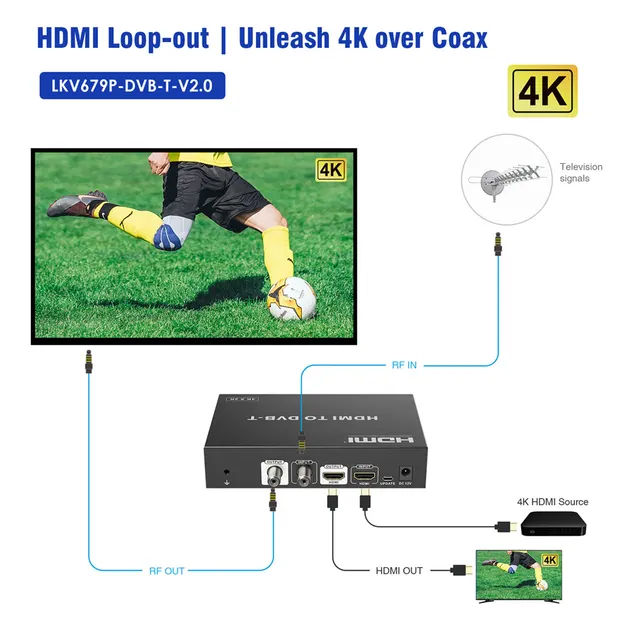

- Pro-Grade Loop-out: Features a zero-latency HDMI loop-out supporting up to 4K@60Hz, perfect for local premium displays.
- HDR Compatibility: Supports High Dynamic Range (HDR10) on the loop-out for vibrant, lifelike color reproduction.

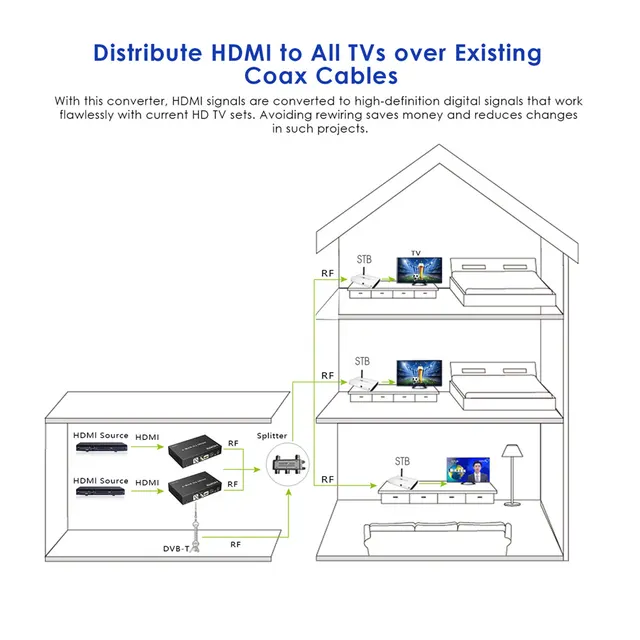

- Massive Scalability: Distribute UHD content to hundreds of TVs simultaneously without the cost of expensive HDMI matrix switchers.

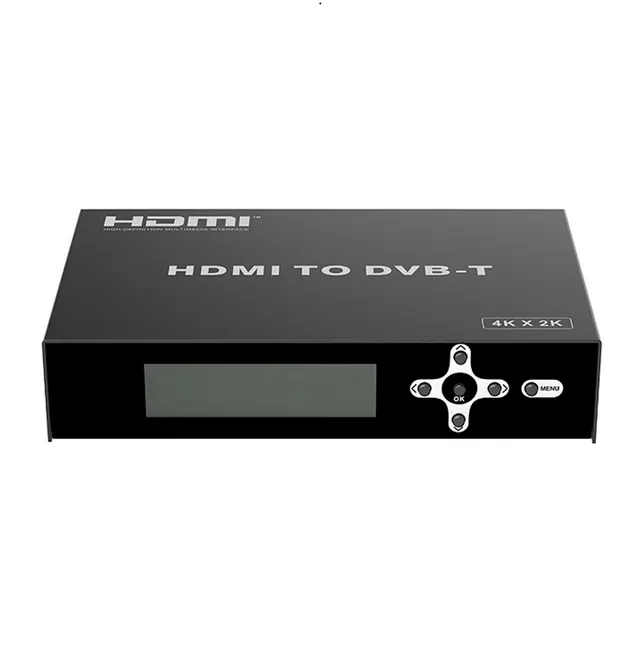

- Intuitive Configuration: Front-panel LCD screen and tactile buttons allow for rapid adjustment of channel names, numbers, and frequencies.
- Efficient Heat Management: Housed in a robust metal chassis designed for superior thermal regulation in 24/7 environments.
Χαρακτηριστικά
- <strong>HDMI Signal</strong>
- HDMI 2.0,compatible HDCP 1.4/HDCP 2.2
- <strong>HDMI DDC Signal</strong>
- 5Vp-p（TTL）
- <strong>HDMI TMDS Signal</strong>
- 0.5~1.5Vp-p（TMDS）
- <strong>Input HDMI Resolution Supported</strong>
- 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz RF OUTPUT: 720p@50/60Hz, 1080P@24/25/30Hz, 3840x2160@24/25/30Hz
- <strong>Video Encoding</strong>
- H.264/H.265(4K)
- <strong>Audio Encoding</strong>
- MPEG2
- <strong>Coaxial output Standard</strong>
- DVB-T
- <strong>Coaxial Cable reqired</strong>
- RG6，RG7，RG11
- <strong>Frequency</strong>
- 177.5 to 866MHz
- <strong>Effective Bitrate</strong>
- Max：24M bits
- <strong>Insert Loss</strong>
- +2dBm
- <strong>RF output Wattage(TX)</strong>
- -46dBm~-19dBm
- <strong>RF Interface</strong>
- British system（75Ω type F）
- <strong>Delay Time</strong>
- 200~300ms（Depends on the decoding ability of receivers）
- <strong>Audio format</strong>
- MPEG（44.1kbps, 48kbps）
- <strong>Power Supply</strong>
- DC12V/1A
- <strong>Product Consumption</strong>
- <8W
- <strong>Working temperature</strong>
- ~20~60℃
- <strong>Stock temperature</strong>
- ~30~70℃
- <strong>Relative Humidity</strong>
- 0~90%RH（No Condensation）
- <strong>Product Dimension</strong>
- 158x115.3x33mm
- <strong>Weight</strong>
- 476g
- <strong>Color</strong>
- Black
