Mercury
Mercury CAT6A FTP Indoor Network Cable OFC 305m Grey 808.032UK
Κωδικός παραγγελίας: 25835EAN: 5015972231203
- Conductor:Solid OFC
- Strands:8 x 1/0.560mmØ ±2%
- Cable:diameter7.3±0.5mm
- Screen:Aluminium/Mylar foil
- Insulation:PE 1.330±0.05mmØ
- Όλα τα χαρακτηριστικά
369,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

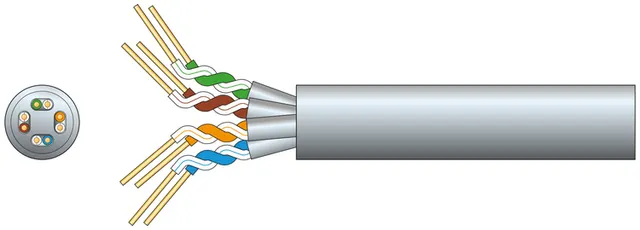

Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
- AWG 23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
Χαρακτηριστικά
- Conductor
- Solid OFC
- Strands
- 8 x 1/0.560mmØ ±2%
- Cable
- diameter7.3±0.5mm
- Screen
- Aluminium/Mylar foil
- Insulation
- PE 1.330±0.05mmØ
- Sheath
- PVC 0.55±0.05mm thickness
- Capacitance
- <330pf/100m
- DC resistance @ 20°C
- <9.38 Ohms/100m
- Impedance (100 to 250MHz)
- 100±15 Ohms
- Impedance (250 to 500MHz)
- 100±22 Ohms
- Return Loss
- >25.61dB
- Attenuation
- <2.51dB
- NEXT
- >103.94dB
- PSNEXT
- >102dB
- ELFEXT
- >110.68dB
- PSELFEXT
- >108.56dB
- Phase delay
- <428.1ns
- Colour
- Grey
- Length
- 305m
- Weight
- 17.4kg
